MX 42/6 18 63A (SYNCHRONOUS)

(512) 931-1962
MX 42/6 18 63A (SYNCHRONOUS)
  • Suitable for maching metal, aluminum and light alloys
  • Power up to 42 kW and high torques up to 67 Nm
  • Front bearings cooling circuit
  • Available with encoder on board, air tool, mql, oil mist and cts
  • Synchronous spindles with HSK 63A and encoder on board
Vorteile
Layout

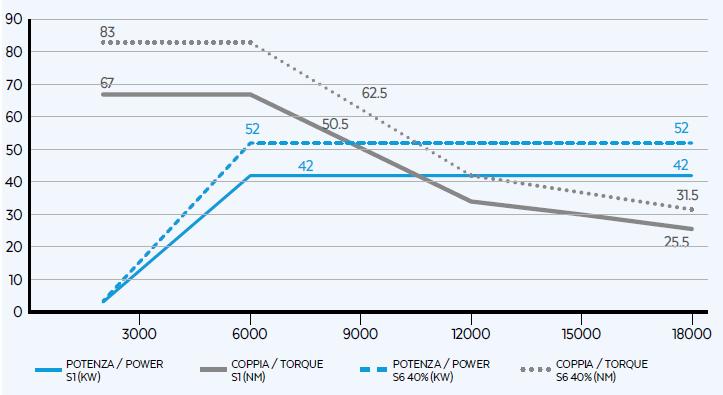

Performance
Technische Daten
Specifications
Max power S1/S6 kW 42/52
Nominal power rpm 6000
Max rotation speed rpm 18000
Max torque S1/S6 Nm 67/83
Current S1/S6 A 120/148
Voltage V 380
Type of electrospindle Synchronous 4 Poles
Weight kg

70



Equipment
Tool taper HSK63A
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)

Release cylinder Pneumatic single-action

Other specifications

Encoder 1 Vpp

Pressurised labyrinth



Optional
Air Tool
Long Nose
Taper Cleaning
Water Tool cooling
CTS lubrication
Axial shaft displacemen sensor
Temperature Sensor
 S5 Sensor
iM Smart Sensor
Oil Mist/MQL
