QX-2 11/10 24 63F

(512) 931-1962
QX-2 11/10 24 63F
  • Suitable for machining wood and aluminium
  • Optimal layout for bi-rotation heads at 90° and 50°
  • Encoder version available
  • Compressed air cooled version available
  • iM SMART SENSOR: speed, vibrations and temperature directly on your PC
Vorteile

HIGH PERFORMANCE
Maximum power (up to 11 Kw) with asynchronous technology

24000 RPM
High speed to meet all types of machining requirements

COMPACT DESIGN
High power levels in only 270 mm

SIMPLIFIED MACHINE INTEGRATION
Simple installation with air and liquid fittings built-in with the spindle (no interface plate)

Layout

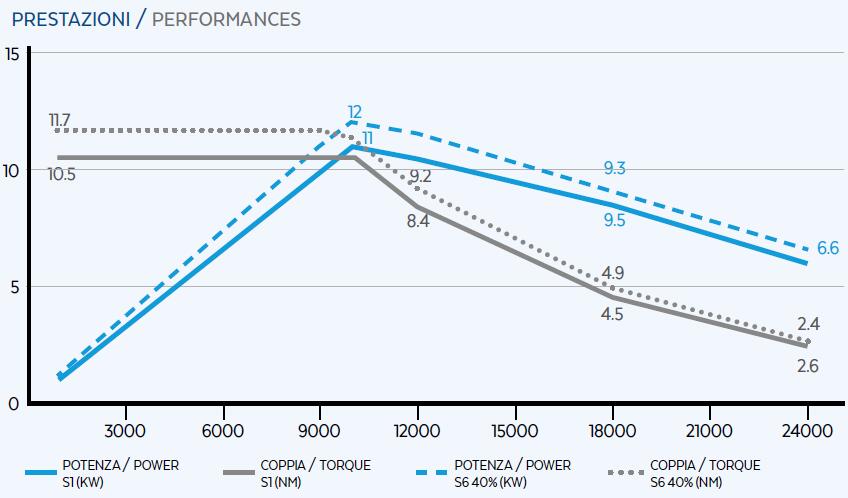

Performance
Technische Daten
Specifications
Max power S1/S6 kW 11/12
Nominal power rpm 10000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 6.7/8.0
Current S1/S6 A 29/31
Voltage V 380
Type of electrospindle Asynchronous 6 Poles
Weight kg 21



Equipment
Tool taper HSK 63F
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)
S5 (Piston back)

Release cylinder Pneumatic single-action

Other specifications

Plug & play PP connection
Taper blow
Pressurised labyrinth



Optional
Encoder 1Vpp or TTL
Speed monitoring sensor (IM Smart Sensor)
Bearings temperature monitoring sensor (IM Smart Sensor)
Vibration sensor (IM Smart Sensor)
Reference sleeves
Configuration
QX-2 11/10 24 HSK63F NC
