QT-2 16/6 16 63E

(512) 931-1962
QT-2 16/6 16 63E
  • Suitable for heavy operations such as aluminum extrusions and / or beams for wooden structures
  • Spindle for considerable stock removal at low RPMs with large diameter blades (up to 550 mm)
  • Possibility of installing encoder in the same casing size
  • Available on single shoulder birotary heads
Vorteile

HIGH PERFORMANCE
Maximum power (up to 25 Kw) available from 6000 RPM with a maximum speed of 16000 RPM

STIFFNESS
Large bearings to ensure maximum stiffness

VERSATILITY
Large bearings to ensure maximum stiffnessOptimal layout for bi-rotation heads at 90° and 50°

MINIMAL LAYOUT
Optimised housing to reach difficult to access machining areas

Layout

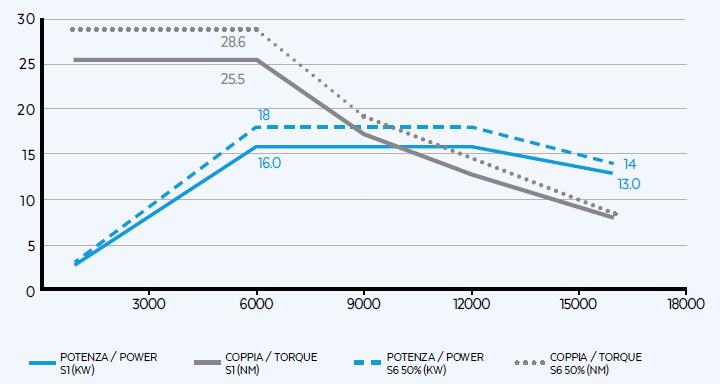

Performance
Technische Daten
Specifications
Max power S1/S6 kW 25/29
Nominal power rpm 6000
Max rotation speed rpm 16000
Max torque S1/S6 Nm 34.5/40.1
Current S1/S6 A 47/56
Voltage V 400
Type of electrospindle Asynchronous 4 Poles
Weight kg

36



Equipment
Tool taper HSK63E
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)
       S3 (Spindle rotation)

S5

Release cylinder Pneumatic single-action

Other specifications

Taper blow
Pressurised labyrinth
