QN-1F 6/18 18 HSK 40C

(512) 931-1962
QN-1F 6/18 18 HSK 40C
  • Suitable for wood and aluminum processing
  • Version with ceramic bearings available
  • Compact layout in only 400 mm in length
  • Wide configurability thanks to different power sizes available
  • Available in the Dual Voltage 220V/380V version
Vorteile

FINE BALANCING
Fine balancing conducted at the end of the complete assembly of the electrospindle

RAPID
Quick tool change thanks to HSK 40C tool holder

EMC ANTIPOLLUTION
Electromagnetic pollution control design

HIGH CONFIGURABILITY
Three types of cooling: forced, servo-ventilated and compressed air

Layout

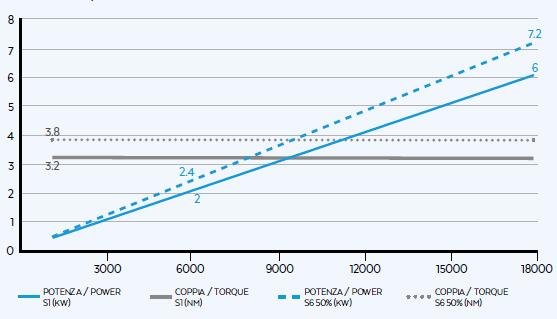

Performance
Technische Daten
Specifications
Max power S1/S6 kW 6/7.2
Nominal power rpm 18000
Max rotation speed rpm 18000
Max torque S1/S6 Nm 3.2/3.8
Current S1/S6 A 12.5/15.3
Voltage V 380
Type of electrospindle Asynchronous 2 poles
Weight kg 15



Equipment
Tool taper HSK 40C
Type of tool changer Manual
Bearings Steel - grease lubrication for life
Cooling Electrofan



Optional
ER32 DX
Compressed air cooling
Shaft driven fan cooling
Dual Voltage 220V-380V
Configuration
QN-1F 6/18 18 HSK40C
