QX-1C 5/12 21 63F

(512) 931-1962
QX-1C 5/12 21 63F
  • Suitable for machining wood and aluminium
  • Optimal layout for bi-rotation heads at 90° and 50°
  • Encoder version available
  • Compressed air cooled version available
  • iM SMART SENSOR: speed, vibrations and temperature directly on your PC
Advantages

HIGH PERFORMANCE
Maximum power (up to 11 Kw) with asynchronous technology

24000 RPM
High speed to meet all types of machining requirements

COMPACT DESIGN
High power levels in only 270 mm

SIMPLIFIED MACHINE INTEGRATION
Simple installation with air and liquid fittings built-in with the spindle (no interface plate)

Layout

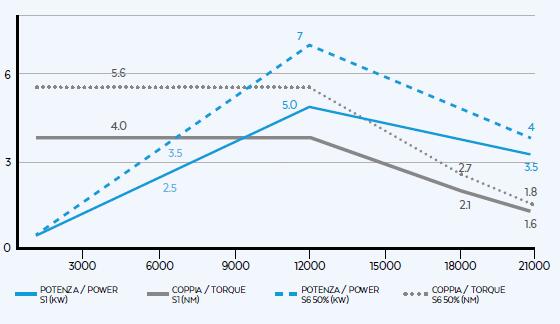

Performance
Technical data
Specifications
Max power S1/S6 kW 5/7
Nominal power rpm 12000
Max rotation speed rpm 21000
Max torque S1/S6 Nm 4/5.6
Current S1/S6 A 23/26
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg 18



Equipment
Tool taper HSK 63F
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Compressed air

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)

Release cylinder Pneumatic single-action

Other specifications

Taper blow
Pressurised labyrinth



Optional
Encoder 1Vpp or TTL
S5 sensor
Speed monitoring sensor
Bearings temperature monitoring sensor
Vibration sensor
Power supply 220 V
Configuration
QX-1C 5/12 24 HSK 63F NC SC
