QX-2 8.5/12 24 63F

(512) 931-1962
QX-2 8.5/12 24 63F
  • Suitable for machining plastic, aluminium and composite materials
  • High rotation speeds up to 40,000 RPM
  • Optimal layout for bi-rotation heads at 90° and 50°
  • Advertising, plastic and advanced materials
Advantages

INTEGRAZIONE MACCHINA SEMPLIFICATA
Installazione semplificata mediante raccordi aria e liquido integrati al mandrino (no piastra di interfaccia)

Layout

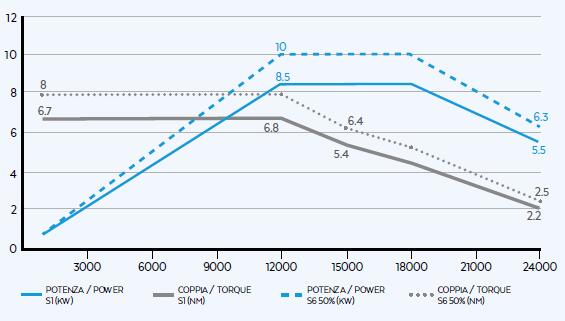

Performance
Technical data
Specifications
Max power S1/S6 kW 8.5/10
Nominal power rpm 12000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 6.8/8
Current S1/S6 A 20/22
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg 18



Equipment
Tool taper HSK 63F
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)

Release cylinder Pneumatic single-action

Other specifications

Plug & play PP connection
Taper blow
Pressurised labyrinth



Optional
Encoder 1Vpp or TTL
S5 sensor
Speed monitoring sensor
Bearings temperature monitoring sensor
Vibration sensor
Power supply 220 V
Configuration
QX-2 8.5/12 24 HSK63F NC
Technical sheet Download
Layout Download
