QE-1F 8/12 28 I30

QE-1F 8/12 28 I30 - Hiteco
  • Designed for machining aluminium and composite materials that require higher rotation speeds
  • High flow electric fan cooling
  • iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link)
  • Electrical connection available in CC circular or Plug & Play PP version
Advantages

CONFIGURABILITY
Solution with encoder in the same layout

STIFFNESS
Long nose layout to guarantee considerable stiffness

28,000 RPM
High speed for High cutting speed operations

SIMPLIFIED MACHINE LAYOUT
Thanks to highly technological bearings with grease lubrication there is no need for specific lubrication control units

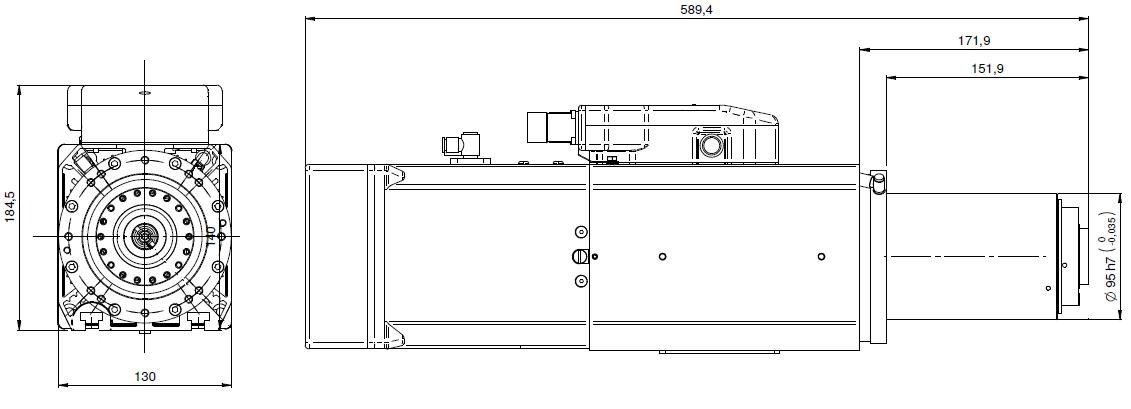

Layout

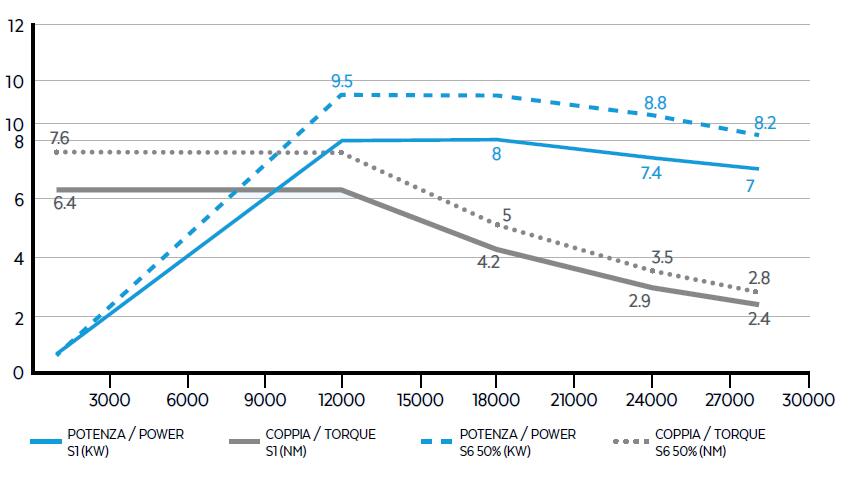

Performance
Technical data
Specifications
Max power S1/S6 kW 8/9
Nominal power rpm 12000
Max rotation speed rpm 28000
Max torque S1/S6 Nm 6.4/7.6
Current S1/S6 A 17/19
Voltage V 380
Type of electrospindle Synchronous 4 Poles
Weight kg 25



Equipment
Tool taper ISO 30
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Electrofan

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)
Release cylinder Pneumatic double-action

Other specifications

 Taper blow
Pressurised labyrinth
CC circular connection



Optional
HSK 63F
C Axis
Air Tool
Encoder 1Vpp or TTL
Plug & play PP connection
CC machine side circular connection
Sensor S5
Speed monitoring sensor
Bearings temperature monitoring sensor
Vibration sensor
Configuration
QE-1F 8/12 28 ISO30 NL CC
Technical sheet Download
Layout Download
3D Request file
