GX-60 I30

Electrospindle for stone and glass processing with high-speed asynchronous motor. Ideal for milling, drilling, cutting out, polishing, bevelling and engraving. Compact design to be installed on CNC machines with vertical plane (drills), horizontal and robots.

  • Tools holder available: BT40 and ISO40 Hiteco
  • Max speed 15000 RPM
  • Air cooling
  • Tool holder doesn't need drive keys for an easy manage of the tool changer
  • Main components in INOX steel
  • Hiteco rotating water joint for tools cooling
  • Sleeve tool cooling
  • Integrated 1Vpp or TTL encoder (opt.)
  • Joint Monitoring Sensor (opt.)
Advantages

Easy maintenance

Very compact design

High speed processing

Sleeve tool cooling

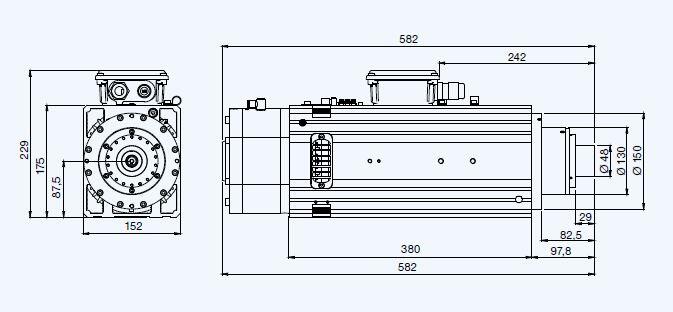

Layout
Performance
Technical data
Specifications
Max power S1/S6 kW 6/7
Nominal power rpm 6000
Max rotation speed rpm 15000
Max torque S1/S6 Nm 9.5/11.5
Current S1/S6 A 14/16
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg 58



Equipment
Tool taper ISO30
Type of tool changer Automatic
Cooling Shaft-driven fan

Sensors

S1 (Tool grip)
 S2 (Collet open)
 S3 (Spindle rotation)

S5 (Piston back)

Release cylinder Pneumatic double-action

Other specifications

Water tool cooling
Pressurised labyrinth



Optional
iM Smart Sensor
ISO40 DIN
Encoder 1Vpp or TTL
Pneumatic index
Joint Monitoring Sensor



Accessories
Sleeve tool cooling
C-axis available



Configuration
GX-1 6/6 13 NC I30
Technical sheet Download
Layout Download
