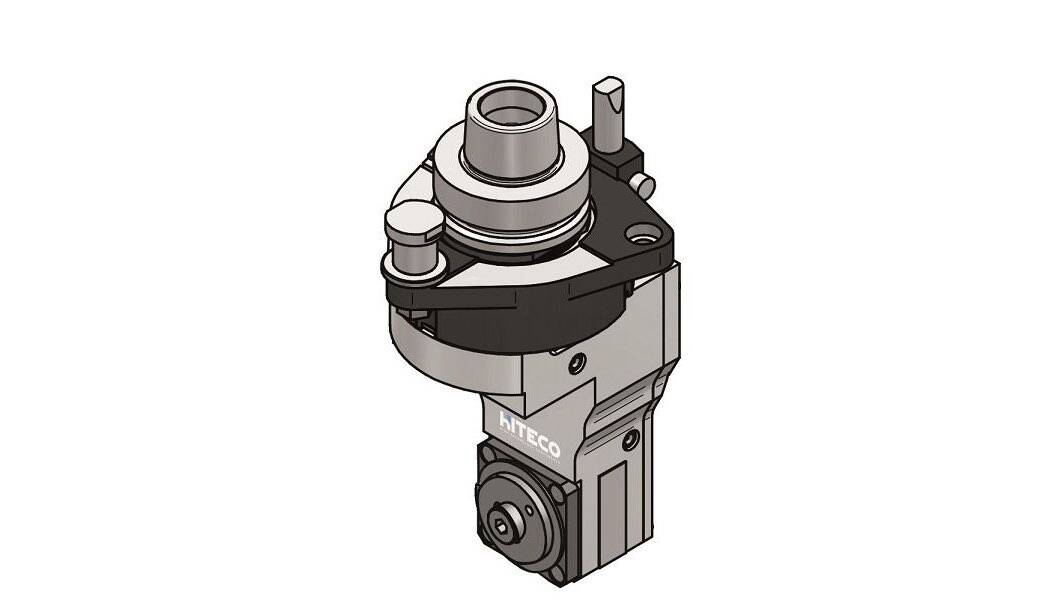

NOTCH H=180

(512) 931-1962
  • Suitable:
NOTCH H=180
  • Ideal for finishing and squaring internal corners
  • Grease lubrication
  • Max spindle speed up to 6000 rpm
  • Available tool holder : ER 20 BLADE
  • Compatible with the main machine tool manufacturers
Layout
Performance
Technical data
Specifiche Tecniche
Max spindle speed 6000 rpm
Max tool speed 13000 rpm
Spindle rotation direction see drawing
Possibility to change electrospindle direction YES
Gear ratio 1:2.17
Max blade diameter D= 160 mm*
Blade hole diameter D= 35 mm
Weight 5 kg
Lubrication Grease
Max temperature 75 °C
Aggregate rotation 0°/360° continuous

*dipende dalla posizione del riferimento angolare
