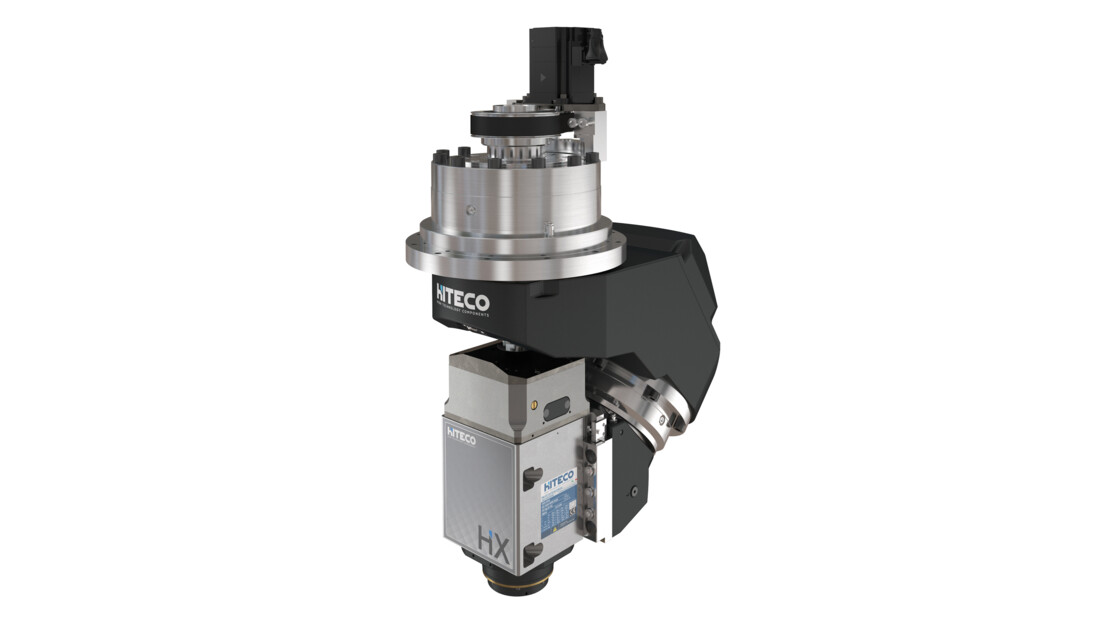

ORBITAL HHX 100

ORBITAL HHX 100 - Hiteco
  • Extreme machining stiffness thanks to the tilting B axis that generates minimum torque on the rotating axes
  • Maximum coverage of the machining areas
  • Possibility of tilting up to -10° for machining undercut
Advantages

Designed for machining wood and composite materials

Wide range of electrospindle powers available

Layout
Performance
Technical data
Technical specifications
  B AXIS C AXIS
Servomotor Yaskawa Yaskawa
Servomotor power 0.75 kW 0.75 kW
Servomotor encoder Absolute Absolute
Gearbox Sumitomo Sumitomo
Max. continuous torque 610 Nm 540 Nm
Peak torque 1960 Nm 1874 Nm
Max axis rotation 185° 320°
Mechanical brakes of axes No No
Max positioning speed 8500°/' 9600°/'
Axes positioning precision ± 30 arcsec ± 30 arcsec
Weight 130 kg
Electrospindle HX-2 10/7 24 63F NC



Electrospindle Options
HSK 63E/63A
Long Nose
Air Tool
Encoder 1Vpp o TTL
Temperature sensor (iM Smart Sensor)
Speed sensor (iM Smart Sensor)
Vibration Sensor (iM Smart Sensor)
