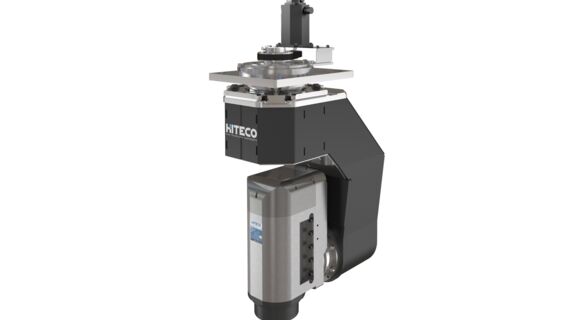

TILT CLT MX-2 47/3 12

TILT CLT MX-2 47/3 12 - Hiteco

Application: CLT (Cross Laminated Timber) Edge wall. Panel height till 320 mm.

Requirements:

• Possibility to use blades till Ø1150 mm with cover (not supplied);

• Torque (S1/S6): 150/172 Nm

• Taper size: HSK 100A

Heavy gearbox: C45 and C55. The application doesn’t need high accuracy: no brake on the axis, no encoder. A-Axis servomotor with brake for safety reason. Saw chain required to make squared holes on the panel. Angular reference necessary to lubricate the chain.

Advantages

Designed for heavy carpentry work

Reduced rotation space for a compact machine design

Layout
Performance
Technical data
Technical specifications
  B AXIS C AXIS
Servomotor Yaskawa Yaskawa
Servomotor power 1.3 kW 1.3 kW
Servomotor encoder Absolute Absolute
Gearbox Sumitomo Sumitomo
Max. continuous torque 1280 Nm 1970 Nm
Peak torque 3180 Nm 4316 Nm
Max axis rotation 120° 320°
Mechanical brakes of axes No No
Max positioning speed 6.700°/' 6.700°/'
Axes positioning precision ± 30 arcsec ± 30 arcsec
Weight 550 kg
Electrospindle MX-2 47/3 12
