TILT M

TILT M - Hiteco

Birotary head for high-precision milling of stainless steel molds and cast iron, aluminum and metal components, for the automotive, NEV (new electric vehicle), Railway and Aerospace sectors. The birotary head can be paired with Hiteco’s spindle: MX-2 38/3 12, MX-2 47/3 12 and MX-2 60/3 12

  • Two axis direct drive allows to guarantee a higher surface finishing level and a higher positioning speed than conventional drive heads
  • Absolute and incremental encoder versions available
  • The high locking torque of the C-axis and A-axis brakes ensure the rigidity necessary to carry out heavy CNC roughing operations
  • The wide range of electrospindles available allows the use of the birotary head for the production of components made of different materials
Advantages

Birotary head body made of cast iron in order to guarantee max stiffness

The c-axis is equipped with an axial-radial bearing with large diameter rollers combined with counter-support roller bearings to increase the stiffness of the joint

Direct drive of the axes made with torque motors with high torque density, high overload capacity and low losses

Electrospindle and torque motor cooling circuit designed to avoid thermal deformations, guaranteeing maximum cutting precision during machining

Layout

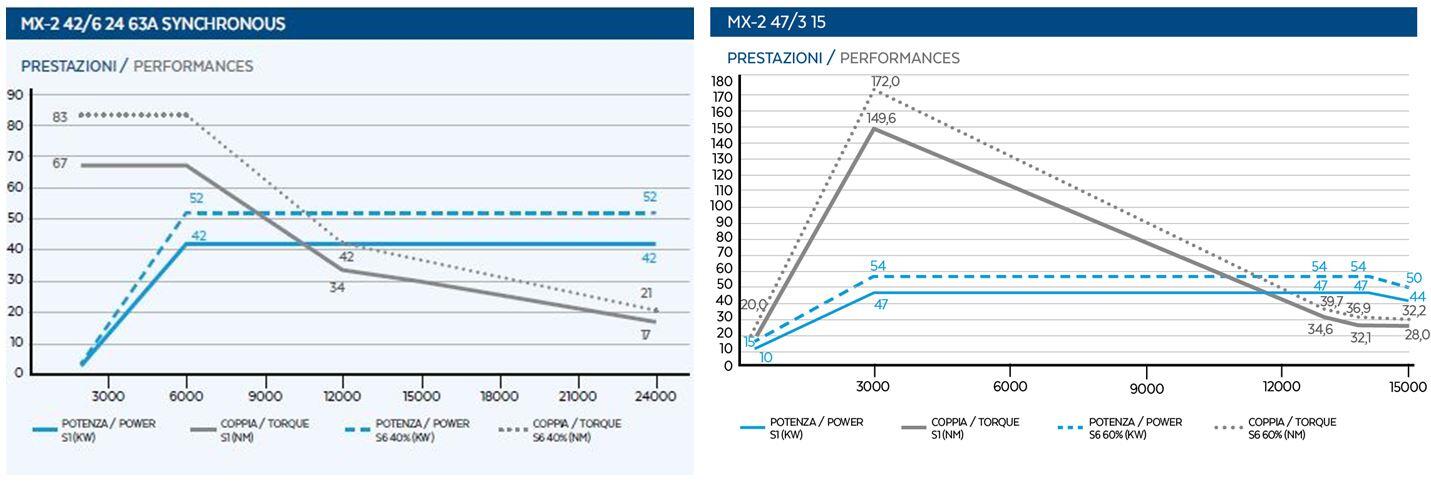

Performance
Technical data
Technical Specifications
  A AXIS C AXIS
Axis motor Direct drive Direct drive
Rated torque 830 Nm 787 Nm
Peak torque 1472 Nm 1560 Nm
Measuring system Incremental Encoder Incremental Encoder
Accuracy of graduation ± 2" ± 2"
Type of clamping Hydraulic Hydraulic
Clamping torque 4000 Nm 4000 Nm
Max axis rotation ± 110° ± 360°
Head fitting diameter ø 335
Spindle fitting diameter ø 180 + ø 210
Weight 800 kg
Electrospindles

MX-2 38/3 12 100A  SYNCHRONOUS

MX-2 47/3 12 100A  SYNCHRONOUS

MX-2 60/3 12 100A  SYNCHRONOUS
Configuration
METAL RANGE FLYER
Technical sheet Download
3D Request file
