TILT WHX 130

  • Designed for machining wood, composite materials, plastic and light aluminium
  • Electrospindles available with a wide range of power levels (up to 25 kW)
  • High positioning precision (+/- 5 arsec with encoder on the axes)
  • High levels of braking torque and stiffness
Advantages

Optimisation of the work times thanks to the elevated dynamics

Reduced rotation space for a compact machine design

Easy replacement of the electrospindle and axis encoder

Layout

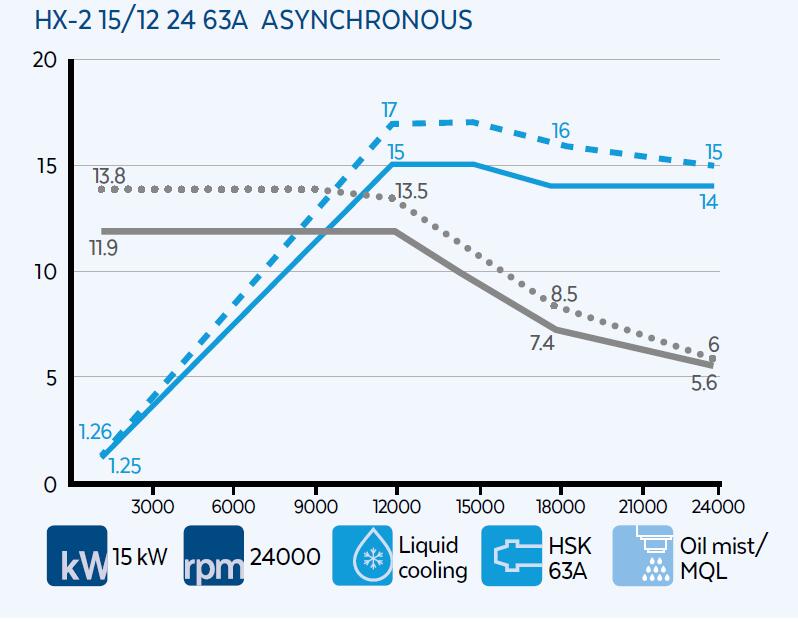

Performance
Technical data
Technical specifications
  B AXIS C AXIS
Servomotor Yaskawa Yaskawa
Servomotor power 0.75 kW 0.85 kW
Servomotor encoder Absolute Absolute
Gearbox Sumitomo Sumitomo
Max. continuous torque 425 Nm 635 Nm
Peak torque 1030 Nm 1962 Nm
Max axis rotation ± 120° ± 320°
Mechanical brakes of axes Yes Yes
Max positioning speed 10000°/' 12500°/'
Axis encoder Heidenhain Heidenhain
Axes positioning precision ±30 arcsec (±5 arcsec)* ±30 arcsec (±5 arcsec)*
Repeatability ±10 arcsec (±5 arcsec)* ±10 arcsec (±5 arcsec)*
Units No. 3
Weight 210 kg
Electrospindle HX-2 13/7 24 63F

                                                                                                                                     *with axes encoder

Electrospindle Options
HSK 63E/63A
Long Nose
Air Tool
Encoder 1Vpp o TTL
Oil Mist/ MQL
Temperature sensor (iM Smart Sensor)
Speed sensor (iM Smart Sensor)
Vibration Sensor (iM Smart Sensor)
Configuration
TILT W-HX 130 YASKAWA
