TILT 4

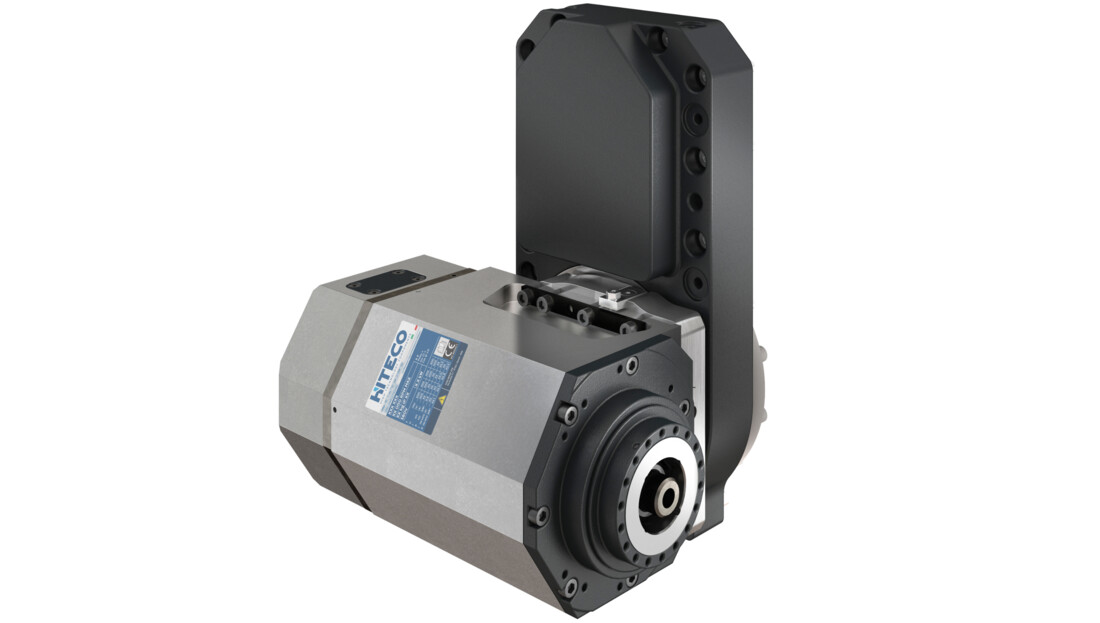

TILT 4 - Hiteco

B-axis for milling and turning operations

Advantages

Suitable for aluminum processing for window and door frames

Reduced rotational dimensions for a compact machine design

Simplified maintenance with quick spindle replacement to reduce machine downtime

Wide range of electrospindle powers available (up to 11 kW)

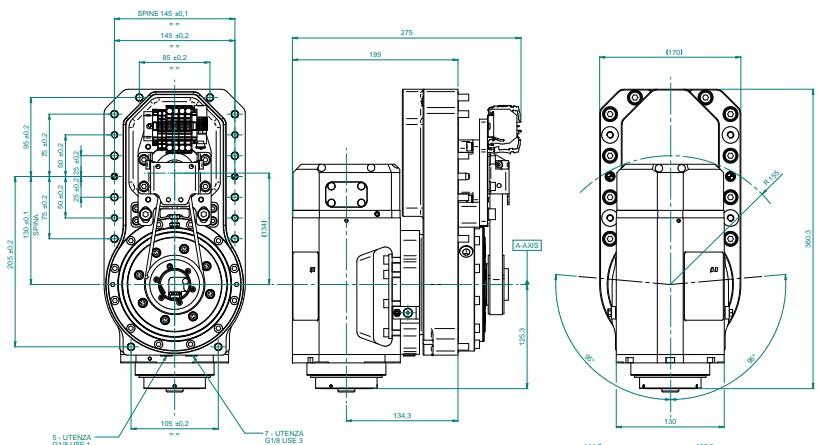

Layout

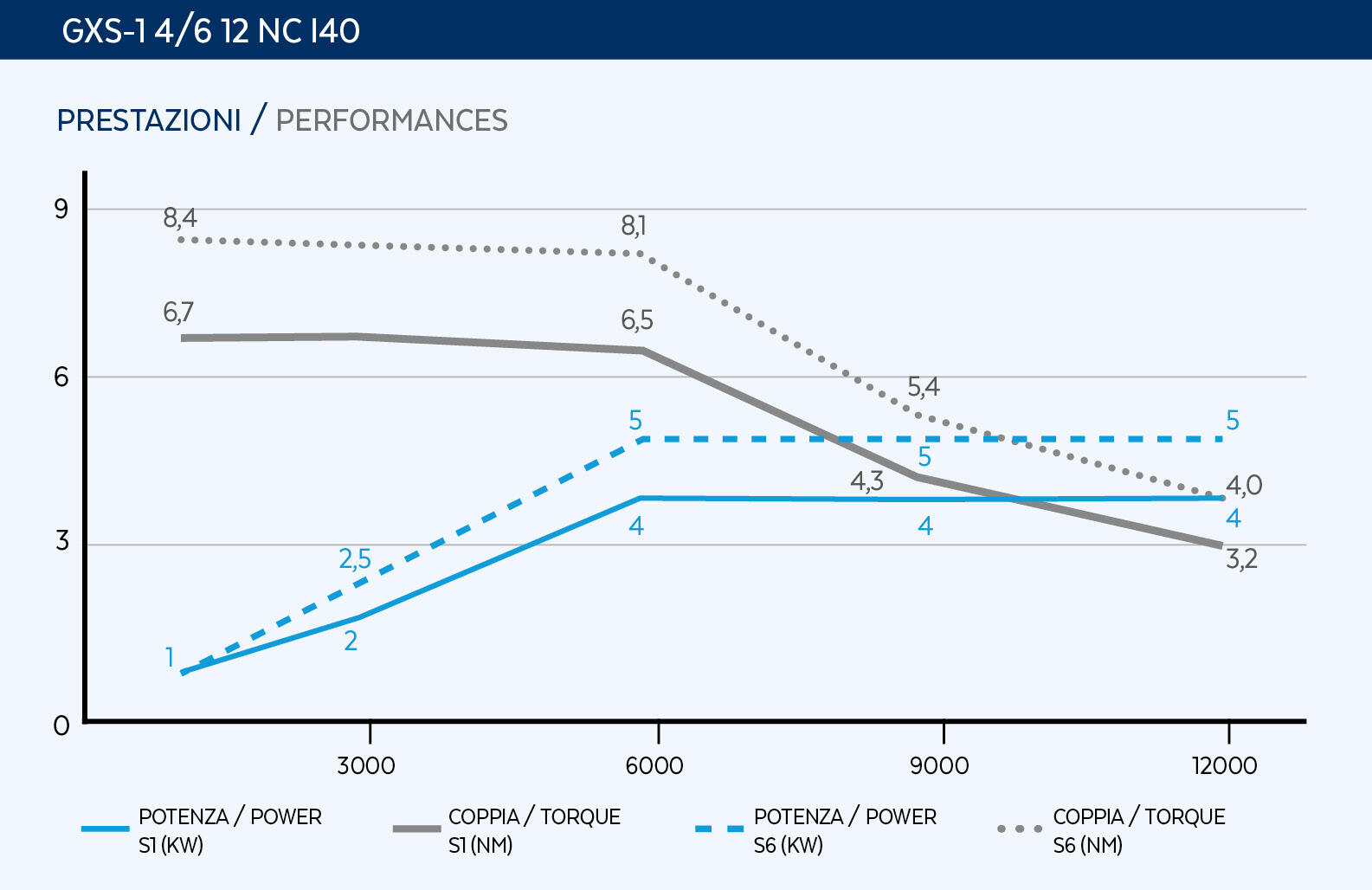

Performance
Technical data
Technical specifications
  A AXIS
Servomotor Yaskawa
Servomotor power 0.4 kW
Servomotor encoder Absolute
Gearbox Harmonic Drive
Max. continuous torque 220 Nm
Peak torque 540 Nm
Max axis rotation ± 185°
Mechanical brakes of axes No
Max positioning speed 8000°/'
Max work speed 4800°/'
Axes positioning precision ± 30 arcsec
Weight 30 kg
Electrospindle QX-2 8.5/10 24 63 F NC



Electrospindle Options
Encoder 1Vpp o TTL
Voltage 220 V
Temperature Sensor (iM Smart Sensor)
Speed Sensor (iM Smart Sensor)
Vibration Sensor (iM Smart Sensor)
Configuration
TILT 4 YASKAWA
