QN-1F 4.5/18 24 ER32 DX BT

  • Suitable for wood and aluminum processing
  • Version with ceramic bearings available
  • Compact layout in only 400 mm in length
  • Wide configurability thanks to different power sizes available
  • Available in the Dual Voltage 220V/380V version
Advantages

FINE BALANCING
Fine balancing conducted at the end of the complete assembly of the electrospindle

EMC ANTIPOLLUTION
Electromagnetic pollution control design

HIGH CONFIGURABILITY
Three types of cooling: forced, servo-ventilated and compressed air

COMPACT DESIGN
High power levels in only 400 mm

Layout

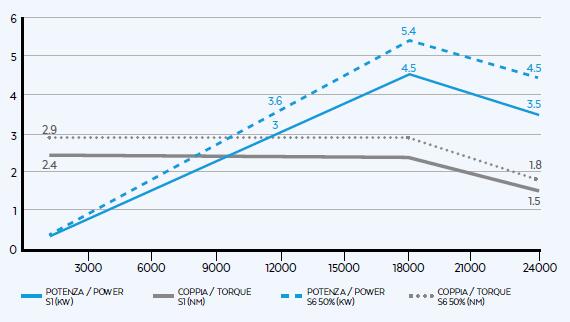

Performance
Technical data
Specifications
Max power S1/S6 kW 4.5/5.4
Nominal power rpm 18000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 2.3/2.9
Current S1/S6 A 10/15
Voltage V 220/380
Type of electrospindle Asynchronous 2 poles w/inverter
Weight kg 14



Equipment
Tool taper ER32 DX
Type of tool changer Manual
Bearings Ceramic - grease lubrication for life
Cooling Electrofan



Optional
HSK40C
Compressed air cooling
Configuration
QN-1F 4.5/18 24 ER32 DX
Technical sheet Download
Layout Download
