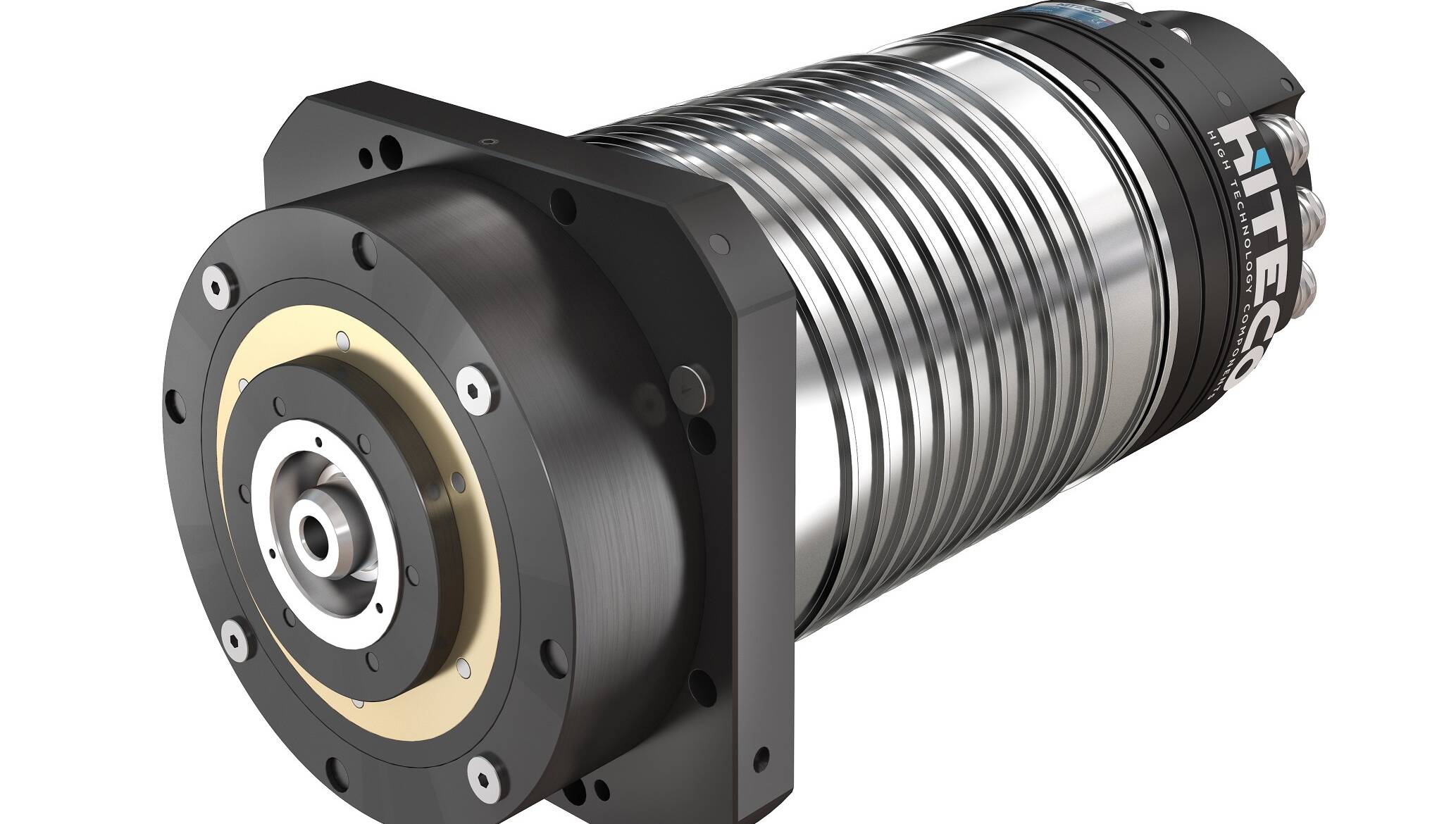

MX-2 42/12 24 63A

High-power electrospindle for milling and drilling on metal, aluminum and composite materials. Compact design allows installation on cnc machine, milling heads with direct drive (torque motors) or mechanically.

  • 24000 RPM max speed with grease lubrication makes this model suitable for the processing of composite materials for aerospace components
  • With ball bearings oil lubrication optional (28000 RPM), spindle can perform on metal surfaces
  • On-board triaxial accelerometer: the sensor measures the vibrations in all directions
Advantages

The spindle is equipped with a rotary joint that allows to cool the tool during the processing through the flow of refrigerant fluid through the shaft (CTS) or through minimal air-oil lubrication

Around the electrospindle nose there is a tool cooling distributor enable to cool it in each machine way

Front and back bearings are monitored from two temperature sensors able to signal abnormal operating temperatures

It is available the axial shaft displacement sensor as optional. It is able to report to the machine the spindle nose movement during the processing, allowing the machine to correct the tool positioning

Layout
Performance
Technical data
Specifications
Max power S1/S6 kW 42/48
Nominal power rpm 12000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 34/39
Current S1/S6 A 96/104
Voltage V 380
Type of electrospindle Asynchronous 6 Poles
Weight kg

70



Equipment
Tool taper HSK63A
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)

S5 (Piston back)

Release cylinder Idraulic single-action

Other specifications

Encoder 1 Vpp

Pressurised labyrinth



Optional
Axial shaft displacement
Ball bearings oil lubrication (28.000 rpm)
Configuration
MX FLYER
Technical sheet Download
