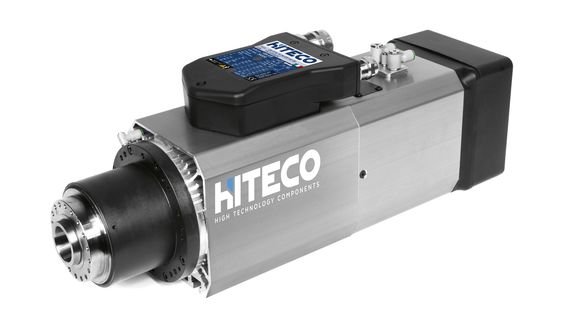

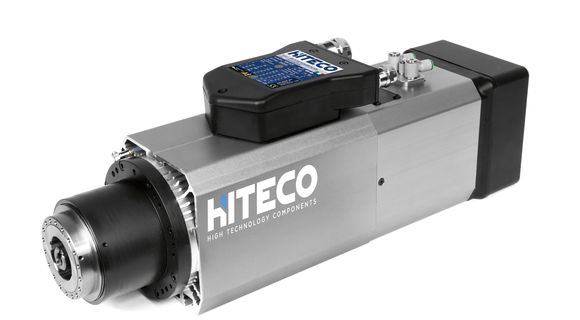

Powertech 400 (5.5 - 16 kW)

Hiteco Powertech 400 series ATC electrospindles are ideal for machining wood and aluminum. They can reach up to 16 kW with electric fan or liquid cooling for intensive processing. This series includes a wide range of powers, optional encoder and HSK63F or ISO30 connections according to your needs. High Torque versions also available.

QE-1F 5.5/6 20 I30

  • Power S1: 5.5 kW
  • Torque S1: 8.8 Nm
  • Max speed: 20000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Electrofan
  • Tool holder: ISO 30
  • Suitable:

QE-1F 5.5/6 20 63F

  • Power S1: 5.5 kW
  • Torque S1: 8.8 Nm
  • Max speed: 20000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Electrofan
  • Tool holder: HSK 63F
  • Suitable:

QE-1F 7.5/6 24 I30

  • Power S1: 7.5 kW
  • Torque S1: 11.9 Nm
  • Max speed: 24000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Electrofan
  • Tool holder: ISO 30
  • Suitable:

QE-1F 7.5/6 24 63F

  • Power S1: 7.5 kW
  • Torque S1: 11.9 Nm
  • Max speed: 24000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Electrofan
  • Tool holder: HSK 63F
  • Suitable:

QE-1F 8.5/6 24 I30

  • Power S1: 8.5 kW
  • Torque S1: 13.5 Nm
  • Max speed: 24000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Electrofan
  • Tool holder: ISO 30
  • Suitable:

QE-1F 8.5/6 24 63F

  • Power S1: 8.5 kW
  • Torque S1: 13.5 Nm
  • Max speed: 24000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Electrofan
  • Tool holder: HSK 63F
  • Suitable:

QE-1F 8.5/12 24 I30

  • Power S1: 8.5 kW
  • Torque S1: 6.4 Nm
  • Max speed: 24000 rpm
  • Rated speed: 12000 rpm
  • Cooling: Electrofan
  • Tool holder: ISO 30
  • Suitable:

QE-1F 8.5/12 24 63F

  • Power S1: 8.5 kW
  • Torque S1: 6.4 Nm
  • Max speed: 24000 rpm
  • Rated speed: 12000 rpm
  • Cooling: Electrofan
  • Tool holder: HSK 63F
  • Suitable:

QE-1F 10/11 24 I30

  • Power S1: 10 kW
  • Torque S1: 10.8 Nm
  • Max speed: 24000 rpm
  • Rated speed: 11000 rpm
  • Cooling: Electrofan
  • Tool holder: ISO 30
  • Suitable:

QE-1F 10/11 24 63F

  • Power S1: 10 kW
  • Torque S1: 10.8 Nm
  • Max speed: 24000 rpm
  • Rated speed: 11000 rpm
  • Cooling: Electrofan
  • Tool holder: HSK 63F
  • Suitable:

QE-1F 12/12 24 63F

  • Power S1: 12 kW
  • Torque S1: 10.9 Nm
  • Max speed: 24000 rpm
  • Rated speed: 12000 rpm
  • Cooling: Electrofan
  • Tool holder: HSK 63F
  • Suitable:

QE-2 9/6 12 63F

  • Power S1: 9 kW
  • Torque S1: 14 Nm
  • Max speed: 24000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Liquid
  • Tool holder: HSK 63F
  • Suitable:

QE-2 11/6 24 63F

  • Power S1: 11 kW
  • Torque S1: 17.5 Nm
  • Max speed: 24000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Liquid
  • Tool holder: HSK 63F
  • Suitable:

QE-2 13/12 24 63F

  • Power S1: 13 kW
  • Torque S1: 10.3 Nm
  • Max speed: 24000 rpm
  • Rated speed: 12000 rpm
  • Cooling: Liquid
  • Tool holder: HSK 63F
  • Suitable:

QE-2 16/12 24 63F

  • Power S1: 16 kW
  • Torque S1: 12.7 Nm
  • Max speed: 24000 rpm
  • Rated speed: 12000 rpm
  • Cooling: Liquid
  • Tool holder: HSK 63F
  • Suitable:
