QE-1F 5.5/6 20 I30

QE-1F 5.5/6 20 I30 - Hiteco
  • Suitable for machining wood, aluminium and advanced materials
  • Liquid cooling available for intensive uses
  • Possibility of drilling, flowdrill and threading
  • Optional encoder available for tapping and precision machining operations
Advantages

MULTIPLE TOOL TAPERS
Available also with HSK 63 F and ISO 30 tool taper

SIMPLE MAINTENANCE
Simple maintenance with spindle kit management

HIGH TORQUE
Maximum power from 6000 RPM in the air and liquid cooled versions

iM SMART SENSOR
speed, vibrations and temperature directly to your PC (link)

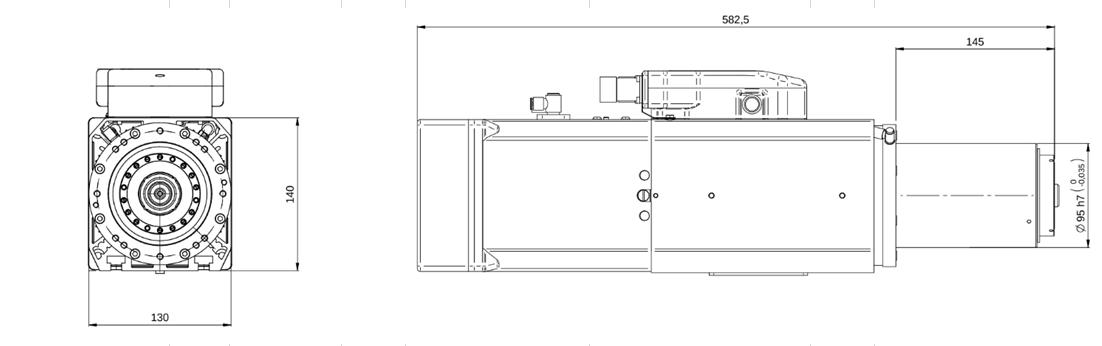

Layout
Performance
Technical data
Specifications
Max power S1/S6 kW 5.5/6.6
Nominal power rpm 6000
Max rotation speed rpm 20000
Max torque S1/S6 Nm 8.8/10.5
Current S1/S6 A 12/13
Voltage V 380
Type of electrospindle Synchronous 4 Poles
Weight kg 23



Equipment
Tool taper ISO 30
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Electrofan

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)
Release cylinder Pneumatic double-action

Other specifications

 Taper blow
Pressurised labyrinth



Optional
HSK 63F
Long nose
C Axis
Air Tool
Encoder 1Vpp or TTL
Plug & play PP connection
CC circular connection
Sensor S5
Speed monitoring sensor
Bearings temperature monitoring sensor
Vibration sensor
Compressed air cooling
Configuration
QE-1F 5.5/6 20 ISO30 NC CB
Technical sheet Download
Layout Download
3D Request file
QE-1C 5.5/6 20 ISO30 NC CB
3D Request file
