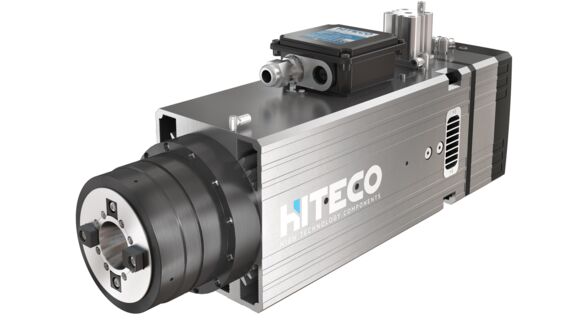

Glasstech (3.7 - 40 kW)

Hiteco's Glasstech series ATC electrospindles are ideal for processing glass. They can reach up to 40 kW and with liquid cooling for intensive machining. This series features ISO30, ISO40 or ISO50 attachment as standard. Optional: iM Smart Sensor, Joint Monitoring Sensor and Sleeve Tool Cooling.

DOWNLOAD THE CATALOGUE



GX-40 I30

  • Power S1: 3.7 kW
  • Torque S1: 6 Nm
  • Max speed: 13000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Shaft driven fan
  • Tool holder: ISO 30

GX-40 I40

  • Power S1: 3.7 kW
  • Torque S1: 6 Nm
  • Max speed: 12000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Shaft driven fan
  • Tool holder: ISO 40

GX-60 I30

  • Power S1: 6 kW
  • Torque S1: 9.5 Nm
  • Max speed: 13000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Shaft driven fan
  • Tool holder: ISO 30

GX-60 I40

  • Power S1: 3.7 kW
  • Torque S1: 6 Nm
  • Max speed: 12000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Water Tool
  • Tool holder: ISO 40

GX-80 I40

  • Power S1: 8 kW
  • Torque S1: 12.7 Nm
  • Max speed: 12000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Shaft driven fan
  • Tool holder: ISO 40

GXM-95 I40

  • Power S1: 9.5 kW
  • Torque S1: 18.3 Nm
  • Max speed: 12000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Shaft driven fan
  • Tool holder: ISO 40

GXM-115 I40

  • Power S1: 11.5 kW
  • Torque S1: 18.5 Nm
  • Max speed: 12000 rpm
  • Rated speed: 6000 rpm
  • Cooling: Shaft driven fan
  • Tool holder: ISO 40

GXM-130 I40

  • Power S1: 13 kW
  • Torque S1: 27.6 Nm
  • Max speed: 12000 rpm
  • Rated speed: 4500 rpm
  • Cooling: Liquid
  • Tool holder: ISO 40

GXM-170 I40

  • Power S1: 17 kW
  • Torque S1: 31 Nm
  • Max speed: 12000 rpm
  • Rated speed: 5200 rpm
  • Cooling: Liquid
  • Tool holder: ISO 40

SGX-130 I40

  • Power S1: 13 kW
  • Torque S1: 27.6 Nm
  • Max speed: 12000 rpm
  • Rated speed: 4500 rpm
  • Cooling: Liquid
  • Tool holder: ISO 40

SGX-170 I40

  • Power S1: 17 kW
  • Torque S1: 31 Nm
  • Max speed: 5200 rpm
  • Rated speed: 4500 rpm
  • Cooling: Liquid
  • Tool holder: ISO 40

SXM-2 250 I40

  • Power S1: 24 kW
  • Torque S1: 45 Nm
  • Max speed: 10000 rpm
  • Rated speed: 2200 rpm
  • Cooling: Liquid
  • Tool holder: ISO 40

SXL-350 I50

  • Power S1: 35 kW
  • Torque S1: 240 Nm
  • Max speed: 8000 rpm
  • Rated speed: 1400 rpm
  • Cooling: Liquid
  • Tool holder: ISO 50
