QT Series

  • Suitable:
QT Series
  • Suitable for machining wooden beams
  • Power up to 25 kW with asynchronous technology and high torque levels
  • Spindle for considerable stock removal at low RPMs with large diameter blades
  • Possibility of installing the encoder in the same casing size
Advantages

HIGH PERFORMANCE
Maximum power (up to 25 Kw) available from 6000 RPM with a maximum speed of 16000 RPM

STIFFNESS
Large bearings to ensure maximum stiffness

VERSATILITY
Large bearings to ensure maximum stiffnessOptimal layout for bi-rotation heads at 90° and 50°

MINIMAL LAYOUT
Optimised housing to reach difficult to access machining areas

Layout

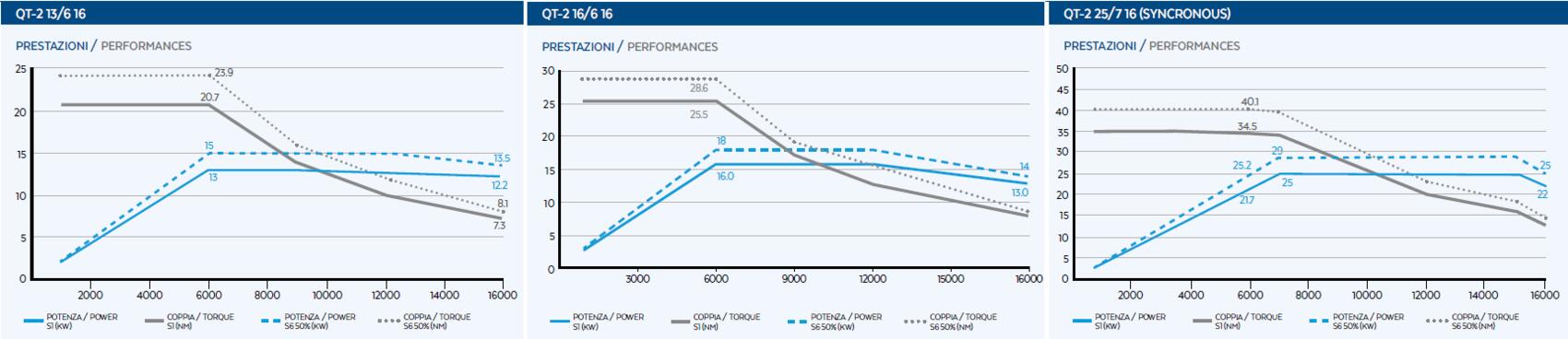

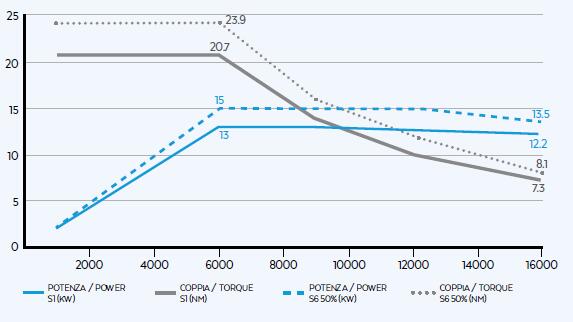

Performance
Technical data

QT-2 13/6 16

Specifications
Max power S1/S6 kW 13/15
Nominal power rpm 6000
Max rotation speed rpm 16000
Max torque S1/S6 Nm 20.7/23.9
Current S1/S6 A 30/35
Voltage V 400
Type of electrospindle Asynchronous 4 Poles
Weight kg

36



QT-2 16/6 16

Specifications
Max power S1/S6 kW 16/18
Nominal power rpm 6000
Max rotation speed rpm 16000
Max torque S1/S6 Nm 25.5/28.6
Current S1/S6 A 36/41
Voltage V 400
Type of electrospindle Asynchronous 4 Poles
Weight kg

36



QT-2 25/7 16 Synchronous

Specifications
Max power S1/S6 kW 25/29
Nominal power rpm 7000
Max rotation speed rpm 16000
Max torque S1/S6 Nm 34.5/40.1
Current S1/S6 A 47/56
Voltage V 400
Type of electrospindle Synchronous 4 Poles
Weight kg

36





Equipment*
Tool taper HSK63E
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)
       S3 (Spindle rotation)

S5 (Piston back)

Release cylinder Pneumatic single-action

Other specifications

Encoder 1 Vpp or TTL**
Taper blow
Pressurised labyrinth

                              * all models

                            ** not for 13 kW version



Optional*
Encoder 1Vpp or TTL**
Plate and pp cable connection

                             * all models

                            ** only for 13 kW version

Configuration
QT-2 13/ 6 16 HSK63E NC SC
Technical sheet Download
Layout Download
QT-2 16/6 16 HSK 63E NC SC
QT-2 25/7 16 HSK 63E NS SC ES (SINCRONOUS)
Technical sheet Download
Layout Download
