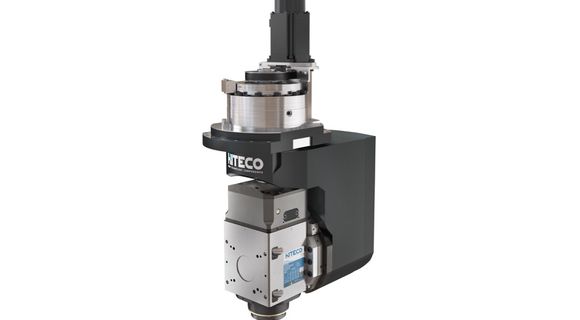

TILT H-PLUS HX 180
- Maximum coverage of processing areas (Ø 630 mm overall dimension)
- Minimum dimensions in rotation for a compact machine design
- High positioning accuracy (1 arcmin)
Layout
Performance
Technical data
Technical specifications | ||
B AXIS | C AXIS | |
Servomotor | Yaskawa | Yaskawa |
Servomotor power | 0.4 kW | 0.65 kW |
Servomotor encoder | Absolute | Absolute |
Gearbox | Sumitomo | Sumitomo |
Max. continuous torque | 350 Nm | 503 Nm |
Peak torque | 1030 Nm | 1030 Nm |
Max axis rotation | ± 130° | ± 320° |
Max positioning speed | 6700°/' | 7500°/' |
Max work speed | 3700°/' | 3700°/' |
Axes positioning speed | 1 arcmin | 1 arcmin |
Weight | 100 kg | |
Electrospindle | HX-2 18/12 24 63F NC |
Electrospindle Options |
HSK 63E/63A |
Long Nose |
Air Tool |
Encoder 1Vpp o TTL |
Oil Mist/ MQL |
Temperature sensor (iM Smart Sensor) |
Speed sensor (iM Smart Sensor) |
Vibration Sensor (iM Smart Sensor) |
Configuration
TILT H-PLUS HX 180 YASKAWA
3D
Request file
