TF.B.8V.3H.0B.A

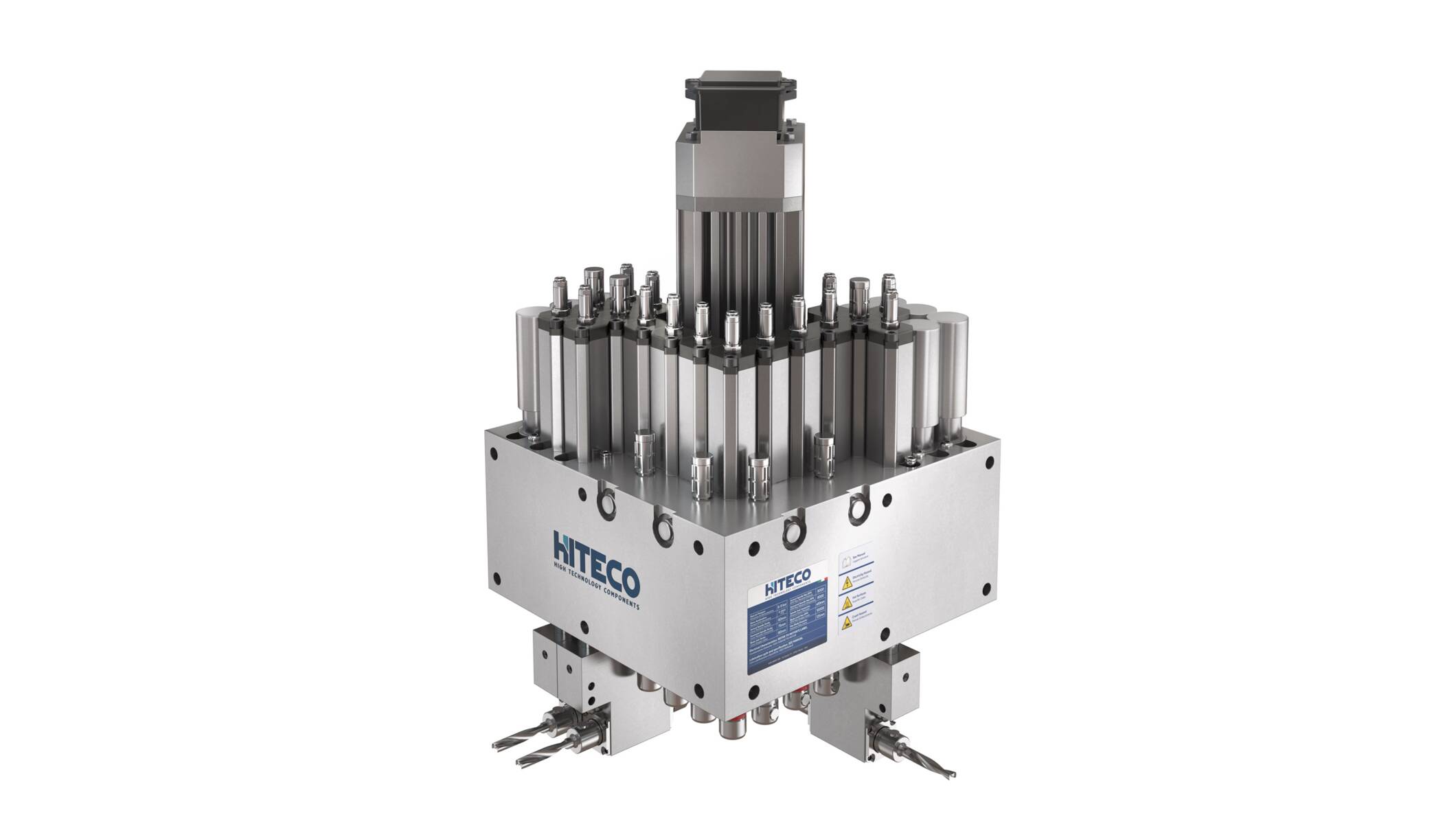

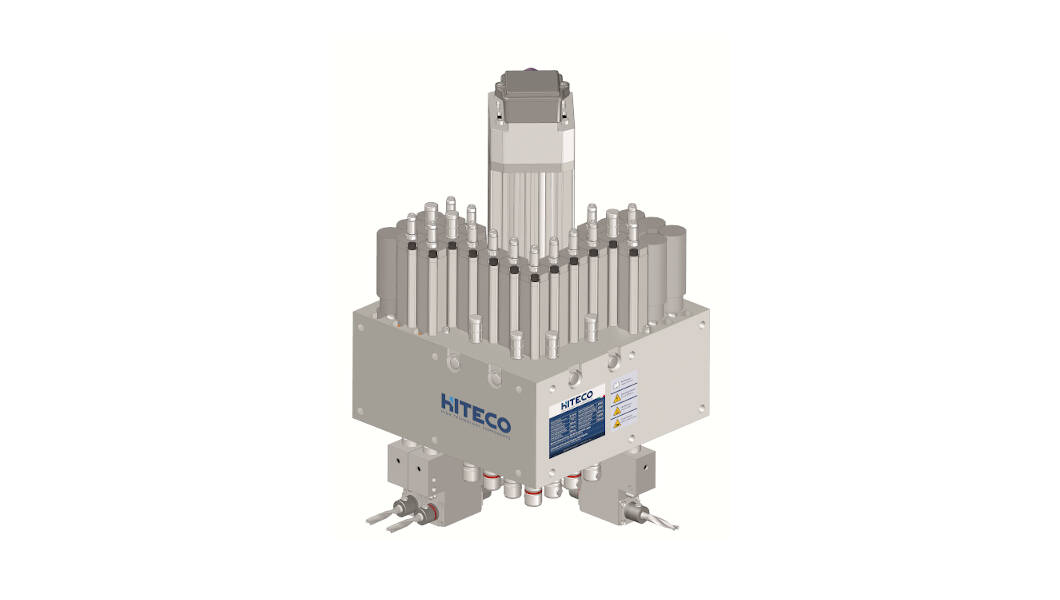

TF.B.8V.3H.0B.A - Hiteco
  • Spindle shafts with diameter Ø 20mm
  • Weldon-type tool taper
  • Rotation speed up to 8000 RPM
Advantages

Punctual lubrication for each spindle to increase the useful life

Quick replacement of the spindle in a few simple steps

Exclusive dust protection system

Layout
Technical data
Technical specifications
Number of vertical spindles 8
Number of horizontal spindles 3
Tool taper 10 H7 mm
Tool interaxis 32 mm
Max tool lenght 70 mm
Vertical spindles stroke 60 mm (opt. 75 mm)
Horizontal spindles stroke 75 mm
Motor power 1.5 kW
Max vertical rotation 8000 rpm
Max horizontal rotation 8000 rpm
Weight 50 kg
Configuration
FORATRICE TF.B.7V.4H.2B.A
Layout Download
3D Request file
