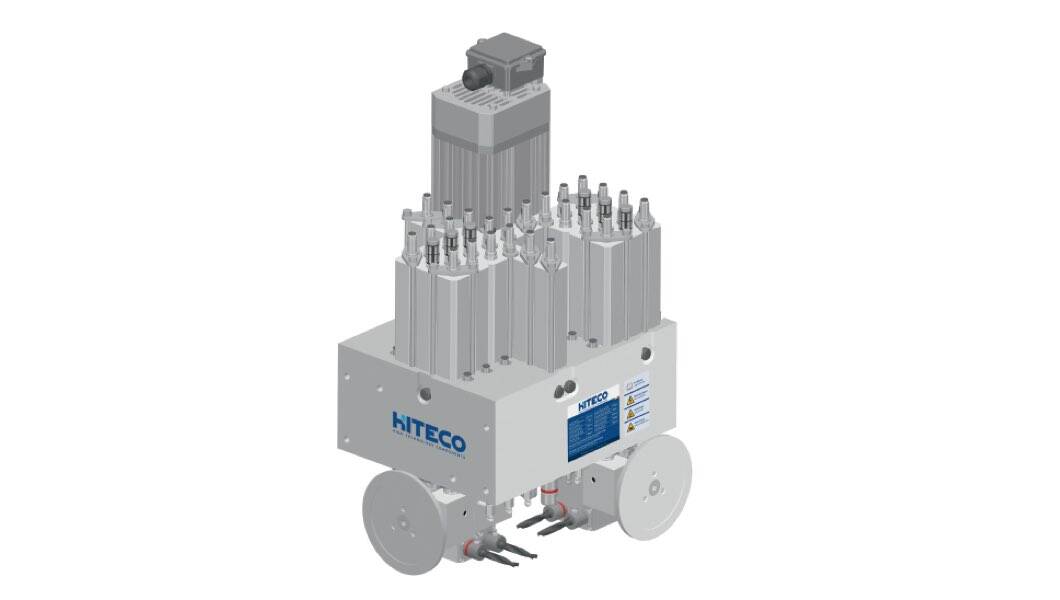

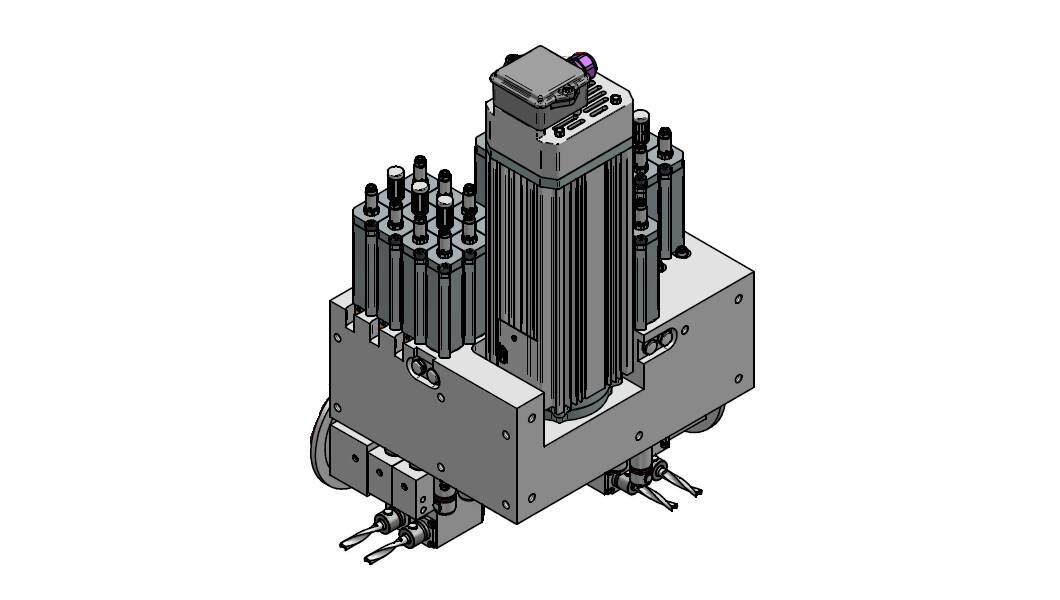

TF.C.12V.4H.2B.A
- Spindle shafts with diameter Ø 20mm
- Weldon-type tool taper
- Rotation speed up to 8000 RPM
Layout
Technical data
Technical specifications | ||
Number of vertical spindles | 12 | |
Number of horizontal spindles | 4 | |
Number of blade units | 2 | |
Tool taper | 10 H7 mm | |
Tool interaxis | 32 mm | |
Max tool lenght | 70 mm | |
Vertical spindles stroke | 60 mm (opt. 75 mm) | |
Horizontal spindles stroke | 75 mm | |
Blade unit stroke | 60 mm | |
Motor power | 1.7 kW | |
Max vertical rotation | 8000 rpm | |
Max horizontal rotation | 8000 rpm | |
Max blade rotation | 10000 rpm | |
Weight | 60 kg |
Configuration
