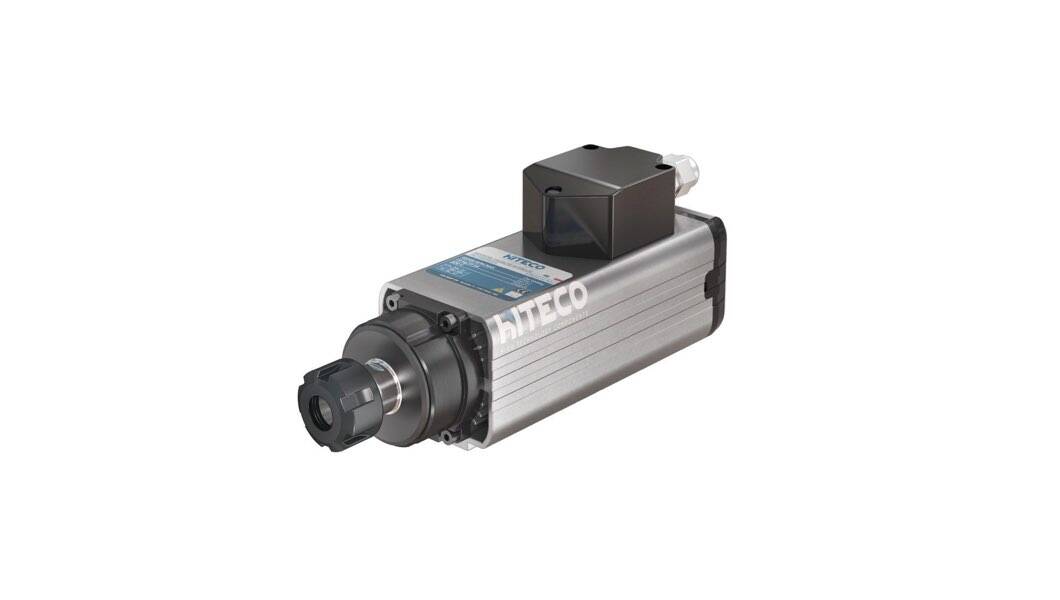

XS-1 1/18 24 ER20 DX

XS-1 1/18 24 ER20 DX - Hiteco
  • Suitable for machining wood
  • Efficient cooling and low noise level
Advantages

Suitable for machining on edgebanders

Compact layout in only 235 mm in length

Layout
Performance
Technical data
Specifications
Max power S1/S6 kW 1/1.2
Nominal power rpm 18000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 0,5 / 0,6
Current S1/S6 A 3 / 3,5
Voltage V 220 / 380
Type of electrospindle Asynchronous 2 poles
Weight kg 3



Equipment
Tool taper ER 20 DX
Type of tool changer Manual
Bearings Steel
Cooling Shaft driven fan
Configuration
XS-1 1/18 24 ER20 DX BT
Technical sheet Download
Layout Download
3D Request file
