S-1 0.19/12 12 D12 L19

  • Suitable:
S-1 0.19/12 12 D12 L19
  • Suitable for machining wood
  • Efficient cooling and low noise level
Advantages

Suitable for machining on edgebanders

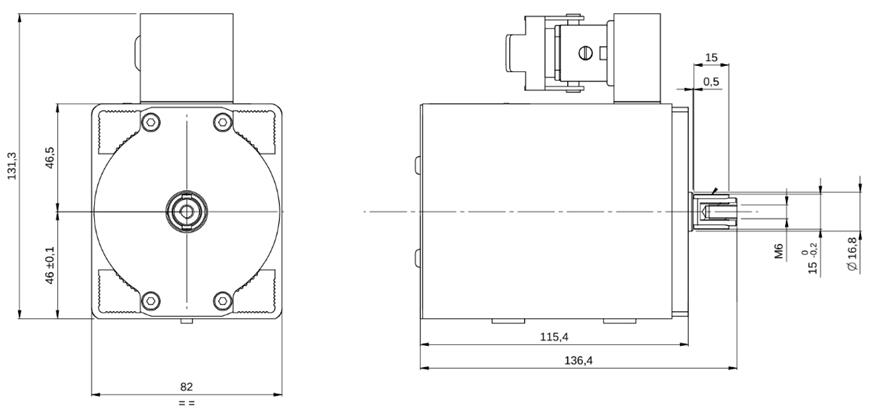

Compact layout in only 136.4 mm in length

Layout
Performance
Technical data
Specifications
Max power S1/S6 kW 0.19
Nominal power rpm 12000
Max rotation speed rpm 12000
Max torque S1/S6 Nm 0.15
Current S1/S6 A 1.4
Voltage V 220
Type of electrospindle Asynchronous 2 poles
Weight kg 2



Equipment
Tool taper Spindle D12
Type of tool changer Manual
Bearings Steel - grease lubrication for life
Cooling Shaft driven fan
Configuration
S-1 0.19/12 12 D12 L19
