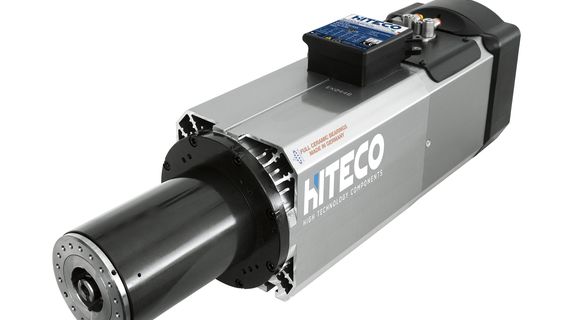

QF-2 12/6 18 63F

  • Designed for machining wood (demanding machining operations of door and window frames) and aluminium
  • Power up to 18 kW and high torque levels for demanding machining operations
  • Liquid cooling available for intensive uses
  • Standard Plug&Play PP type of electrical connection
  • iM SMART SENSOR: speed, vibrations and temperature directly on your PC
Advantages

DEMANDING MACHINING OPERATIONS
Available with HSK 63E tool taper for double profile tools to have two profiles of different windows on the same tool holder

HIGH TORQUE
Maximum power from 6000 RPM in the air and liquid cooled versions

STIFFNESS
Long nose layout to guarantee considerable stiffness

CONFIGURABILITY
With the same layout there is a wide range of power options available (up to 18 kW)  to meet different types of machining operations

Layout
Performance
Technical data
Specifications
Max power S1/S6 kW 12/15
Nominal power rpm 6000
Max rotation speed rpm 18000
Max torque S1/S6 Nm 19.1/23.9
Current S1/S6 A 28/35
Voltage V 380
Type of electrospindle Synchronous 4 Poles
Weight kg 35



Equipment
Tool taper HSK 63F
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)

Release cylinder Pneumatic double-action

Other specifications

Plug & play PP machine side connection
Taper blow
Pressurised labyrinth



Optional
HSK 63E
C Axis
Plug & play PP machine side connection
Speed monitoring sensor
Bearings temperature monitoring sensor
Vibration sensor
Configuration
QF-2 12/6 18 HSK63F NL PP
