KX-2 31/3 15 63A (SYNCHRONOUS)

KX-2 31/3 15 63A (SYNCHRONOUS) - Hiteco
  • 适合金属、合金和铝材加工
  • 扭矩密度高，最大可达 100 Nm
  • 前轴承冷却回路
  • 可提供的版本有 AIR TOOL、MQL、OIL MIST 和 CTS
Advantages

最大扭矩值高

可提供外壳

存在气动释放缸（大大降低气动系统）

WIDE RANGE OF OPTIONALS
Encoder, Air tool and Mql - Oil Mist (“aerosol oil”) for optimal precision and lubrication during machining

Layout

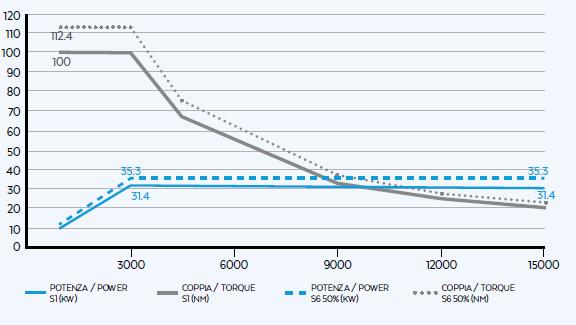

Performance
Technical data
技术规格
最大功率 S1/S6 kW 31/35.3
弯管 rpm 3000
最大旋转速度 rpm 15000
最大扭矩 S1/S6 Nm 100/112.4
电流 S1/S6 A 132/149
电压 V 400
电主轴类型 8极同步，带变频器
重量 kg

100



配置
刀具接口 HSK63A
换刀类型 自动
轴承 陶瓷 - 永久润滑
冷却 液体

传感器

S1 (刀具夹紧)
S2 (夹钳打开)
释放缸 单效气动

其他特性

 加压迷宫
编码器 1 Vpp



可选
Air Tool
锥柄吹气
刀具水冷
CTS润滑
油雾/MQL
温度传感器
Configuration
KX RANGE
Technical sheet Download
3D Request file
KX-2 31/3 15 HSK 63A NC ES CS
Technical sheet Download
3D Request file
