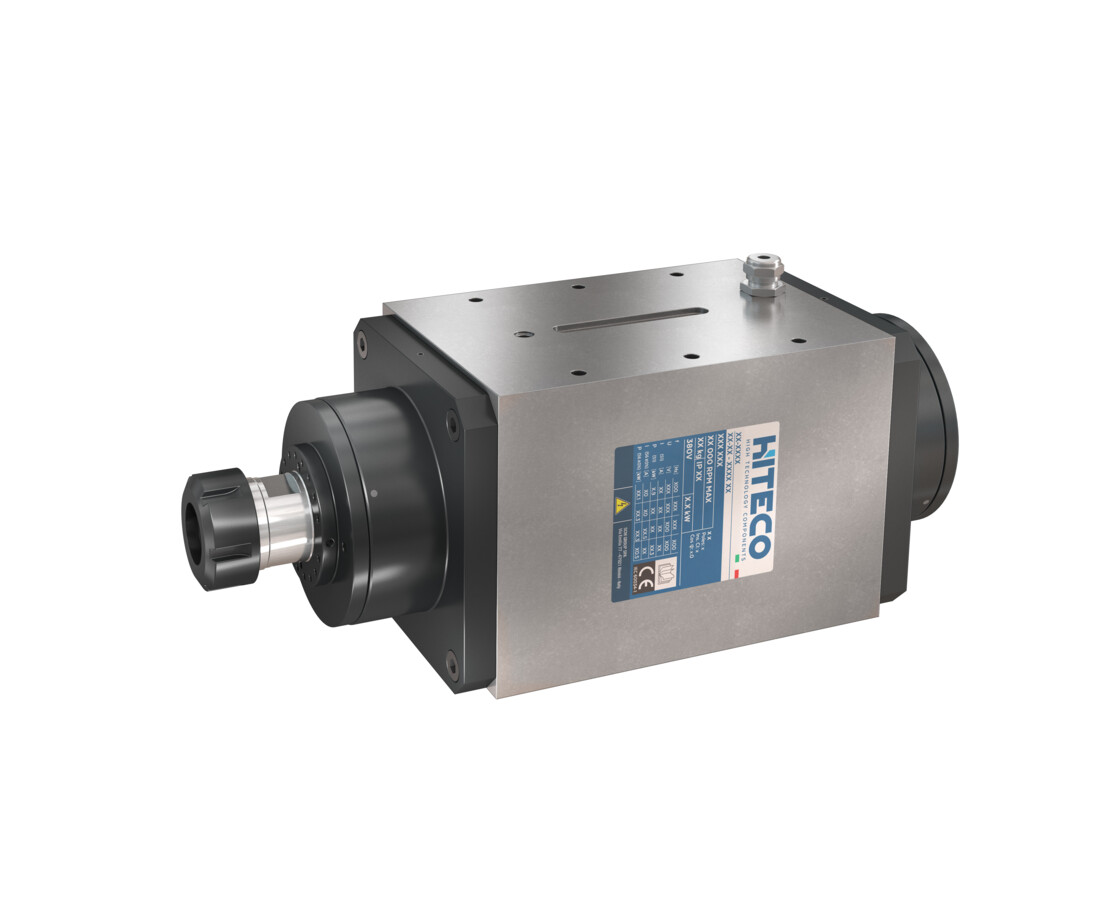

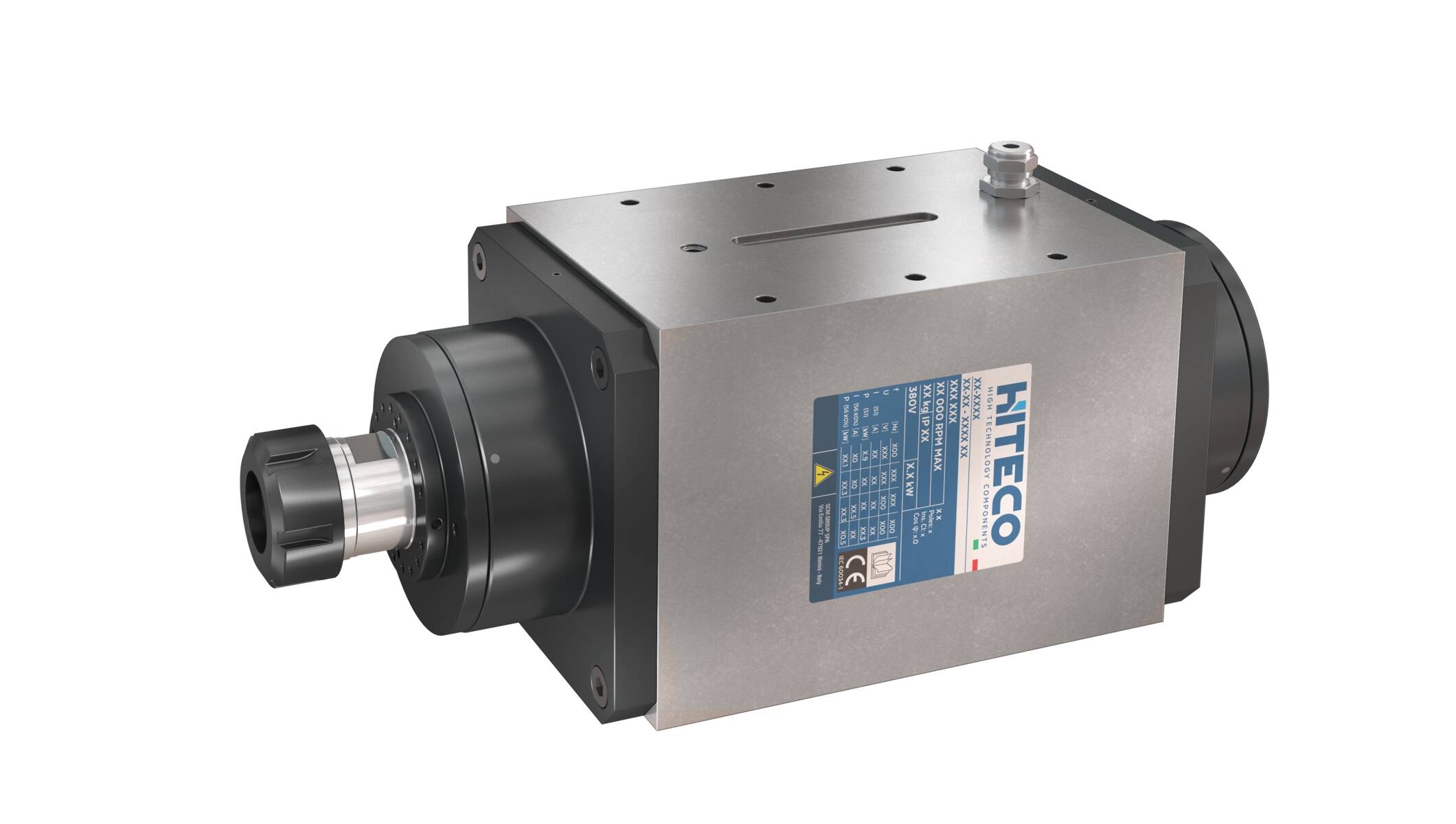

MA-1C 7.5/12 24 ER32 DX

  • 适合在灰尘高的环境内加工材料
  • 在双向旋转头上安装方便
  • 高效的压缩空气冷却
  • 可提供 ER32 和 ER40
Advantages

在3轴和5轴应用上轻松安装

紧凑的布局

手动刀具双接口

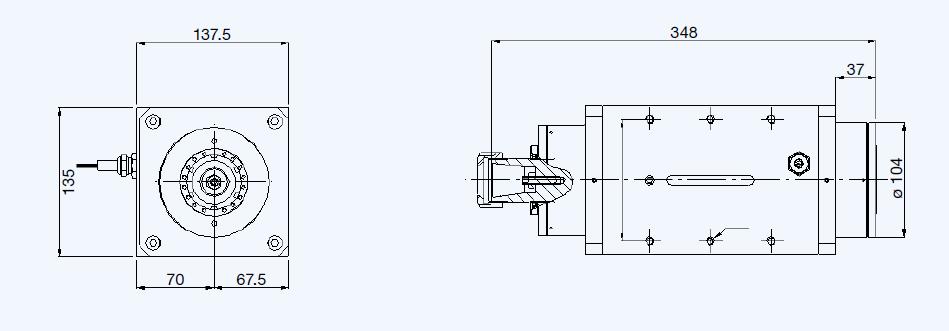

Layout
Performance
Technical data
技术规格
最大功率 S1/S6 kW 7.5/8.5
弯管 rpm 12000
最大旋转速度 rpm 24000
最大扭矩 S1/S6 Nm 6/6.8
电流 S1/S6 A 16/17
电压 V 380
电主轴类型 4极同步,带变频器
重量 kg 22



配置
刀具接口 ER32 DX
换刀类型 手动
轴承 陶瓷 - 永久润滑
冷却 压缩空气

其他特性

加压迷宫
Configuration
MA-1C 7.5/12 24 ER32 DX
Technical sheet Download
