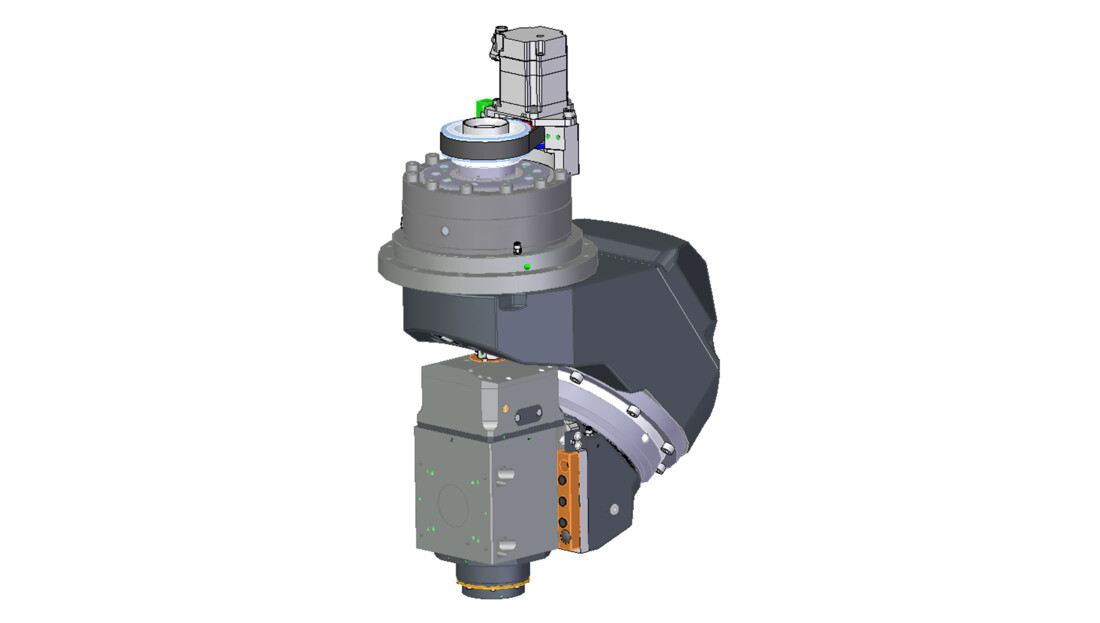

ORBITAL HHX 150

ORBITAL HHX 150 - Hiteco
  • 极高的加工硬度，得益于倾斜的B轴在转轴上产生非常小的扭矩
  • 最大程度覆盖加工区域
  • 可倾斜至-10°实现底切加工
  • C轴±320°广角旋转（选配：连续旋转）
Advantages

适合木材和复合材料的加工

可提供的电主轴功率范围广

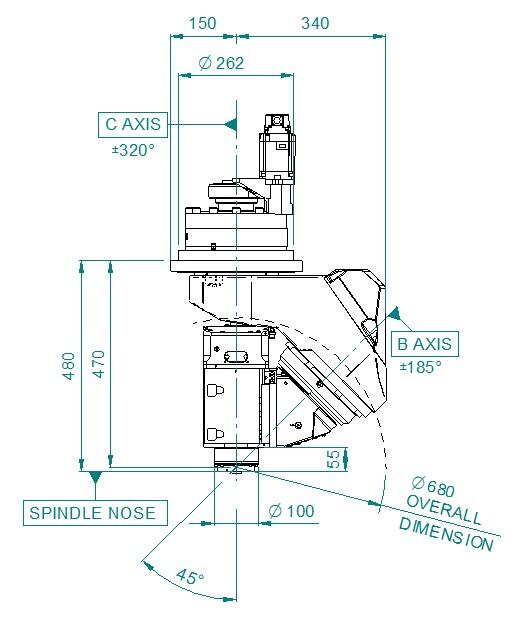

Layout

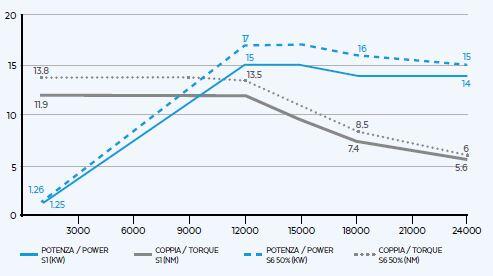

Performance
Technical data
技术规格
  B轴 C轴
伺服电机 Yaskawa Yaskawa
伺服电机功率 0.75 kW 0.75 kW
伺服电机编码器 绝对 绝对
减速器 Sumitomo Sumitomo
连续最大扭矩 610 Nm 540 Nm
峰值扭矩 1960 Nm 1874 Nm
轴最大旋转角度 185° 320°
机械制动 No No
最大定位速度 8.500°/' 9.600°/'
轴定位精度 ± 30 arcsec ± 30 arcsec
重量 130 kg
电主轴 HX-2 15/12 24 63F NC



Electrospindle Options
HSK 63E/63A
Long Nose
Air Tool
Encoder 1Vpp o TTL
Temperature sensor (Im Smart Sensor)
Speed sensor (Im Smart Sensor)
Vibration Sensor (Im Smart Sensor)
