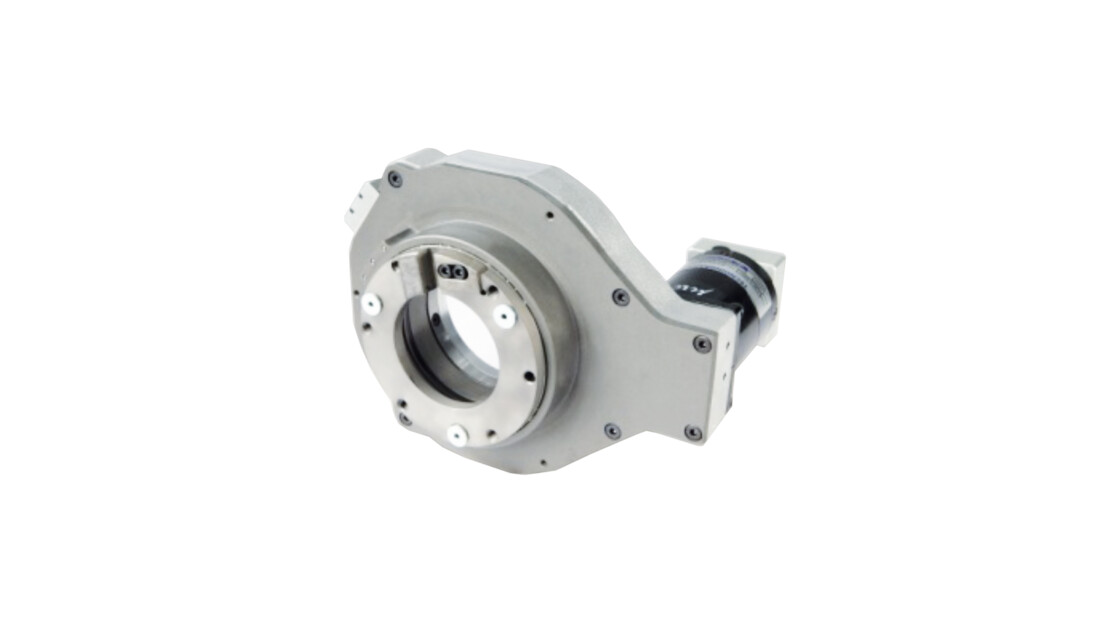

C AXIS for POWERTECH 300-400 LONG NOSE (with Yaskawa servomotor)

  • Available for electrospindles with ISO30 and HSK63F tool holders
  • Predisposition of 3 independent pneumatic users
  • Available for short and long nose electrospindles
Layout
Technical data
Specifications
Total reduction ratio 1 : 100
Nominal input torque 0.95 Nm
Max input torque 3.82 Nm
Nominal input speed 3000 rpm
Max input speed 5000 rpm
Servomotor Yaskawa SGMEV-03DDA61
Backlash 0.07°
Weight 14 kg
Configuration
ASSE C PT 300-400 NASO LUNGO (con motore Yaskawa)
Layout Download
