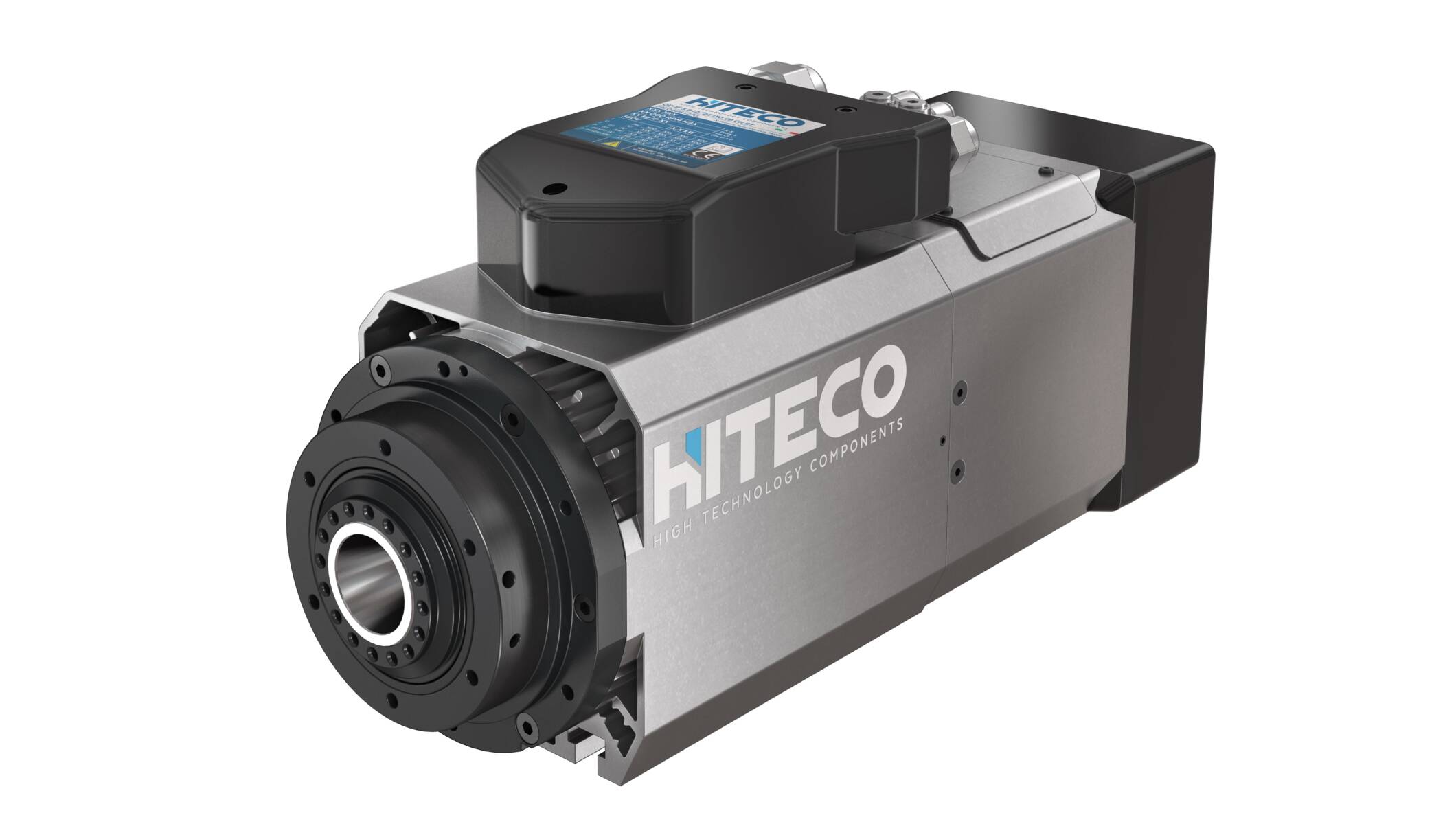

QE-1F 4 12/24 I30

  • Suitable for machining wood, aluminium and plastic
  • Ceramic bearings for a longer life of the electrospindle
  • iM SMART SENSOR: speed, vibrations and temperature directly on your PC
  • Available in the dual voltage version 220V/380V
Advantages

COMPACT DESIGN
High power levels in only 394 mm

MULTIPLE TOOL TAPERS
Available also with HSK 63 F tool taper and ISO30

CONFIGURABILITY
With the same layout there are a wide range of power options available from 4 to 5.5 kw and optionals (encoder, dual voltage)

SIMPLE MAINTENANCE
Simple maintenance with spindle kit management

Layout
Performance
Technical data
Specifications
Max power S1/S6 kW 4/5
Nominal power rpm 12000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 3.2/4
Current S1/S6 A 8.5/10
Voltage V 380
Type of electrospindle Asynchronous 2 Poles w/inverter
Weight kg 19



Equipment
Tool taper ISO 30
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Electrofan

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)

Release cylinder Pneumatic single-action

Other specifications

Taper blow
Pressurised labyrinth
  Dual voltage 22V/380V power supply



Optional
HSK 63F
Plug&Play PP connection
CC Circular Connection
Encoder 1Vpp or TTL
Sensor S5
Speed monitoring sensor (IM Smart Sensor)
Bearings temperature monitoring sensor (IM Smart Sensor)
Vibration sensor (IM Smart Sensor)
Compressed air cooling
Configuration
QE-1F 4 12/24 ISO30 CB CH BT
Technical sheet Download
Layout Download
QE-1F 4 12/24 I30 CC CH BT
Technical sheet Download
Layout Download
QE-1F 4 12/24 I30 CC LH BT
Technical sheet Download
Layout Download
Related products
QE-1F 4 12/24 63F
QE-1F 5.5/12 24 I30
QE-1F 5.5/12 24 63F
