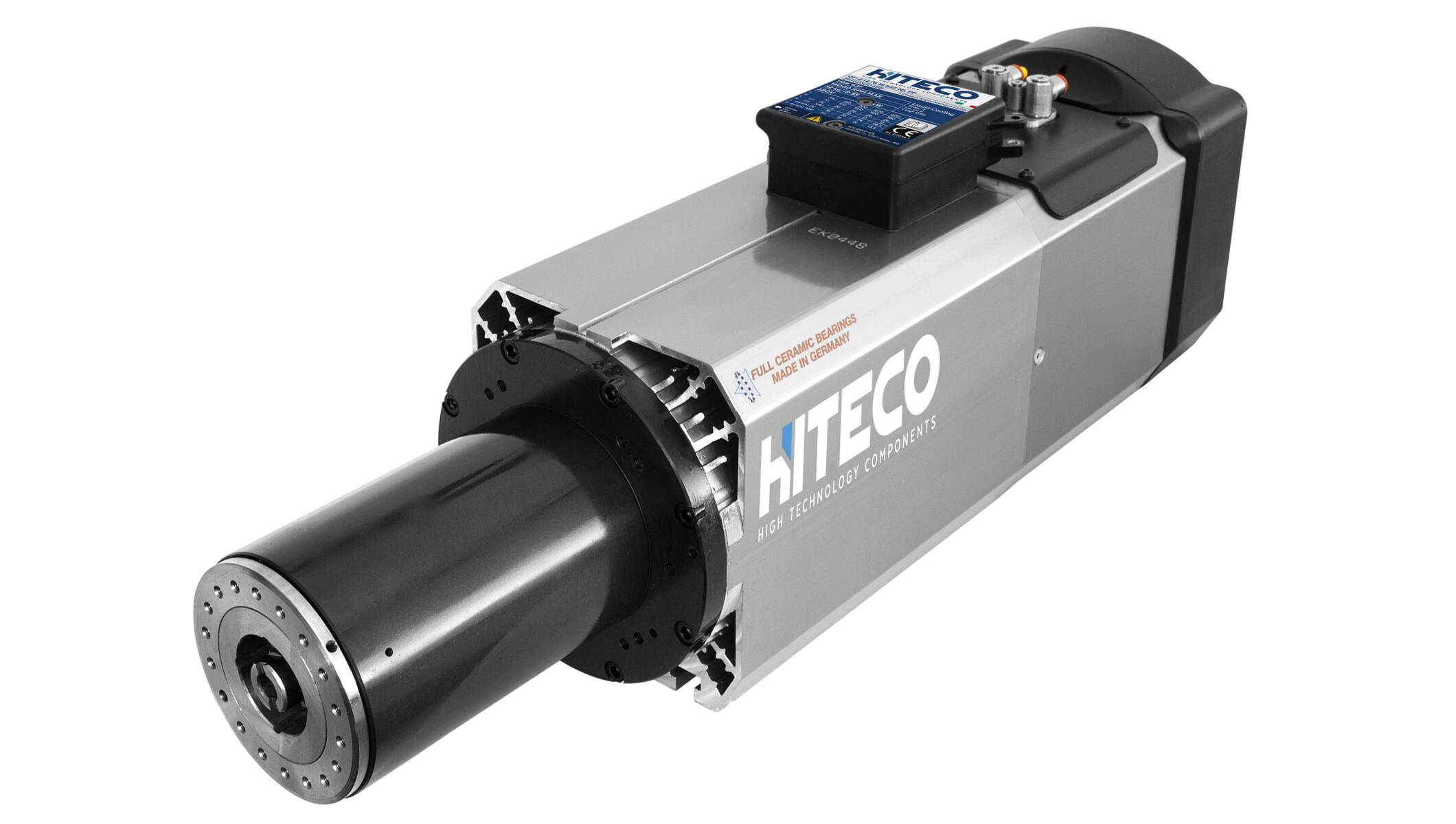

QF-1F 13/7 15 63F
- Designed for machining wood (demanding machining operations of door and window frames) and aluminium
- Power up to 18 kW and high torque levels for demanding machining operations
- Liquid cooling available for intensive uses
- Standard Plug&Play PP type of electrical connection
- iM SMART SENSOR: speed, vibrations and temperature directly on your PC
DEMANDING MACHINING OPERATIONS
Available with HSK 63E tool taper for double profile tools to have two profiles of different windows on the same tool holder
Layout
Performance
Technical data
Specifications | ||
Max power S1/S6 | kW | 13.3/16 |
Nominal power | rpm | 7000 |
Max rotation speed | rpm | 15000 |
Max torque S1/S6 | Nm | 16.9/20.4 |
Current S1/S6 | A | 28/32 |
Voltage | V | 380 |
Type of electrospindle | Synchronous 4 Poles | |
Weight | kg | 35 |
Equipment | ||
Tool taper | HSK 63F | |
Type of tool changer | Automatic | |
Bearings | Ceramic - grease lubrication for life | |
Cooling | Electrofan | |
Sensors |
S1 (Tool grip) |
|
Release cylinder | Pneumatic double-action | |
Other specifications |
Plug & play PP machine side connection | |
Taper blow | ||
Pressurised labyrinth |
Optional |
HSK 63E |
C Axis |
Plug & play PP machine side connection |
Speed monitoring sensor |
Bearings temperature monitoring sensor |
Vibration sensor |
