HX 3C Series
- Suitable for machining aluminium and composite materials
- Designed for demanding machining operations for 3-axis CNC and robotic arms
- Fast electrical connection with standard circular connectors
- iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link)
CONFIGURABILITY
With the same layout there is a wide range of power options available (up to 20 kW) to meet different types of machining operations
STIFFNESS
5 bearings in the long nose version for greater precision in demanding machining operations

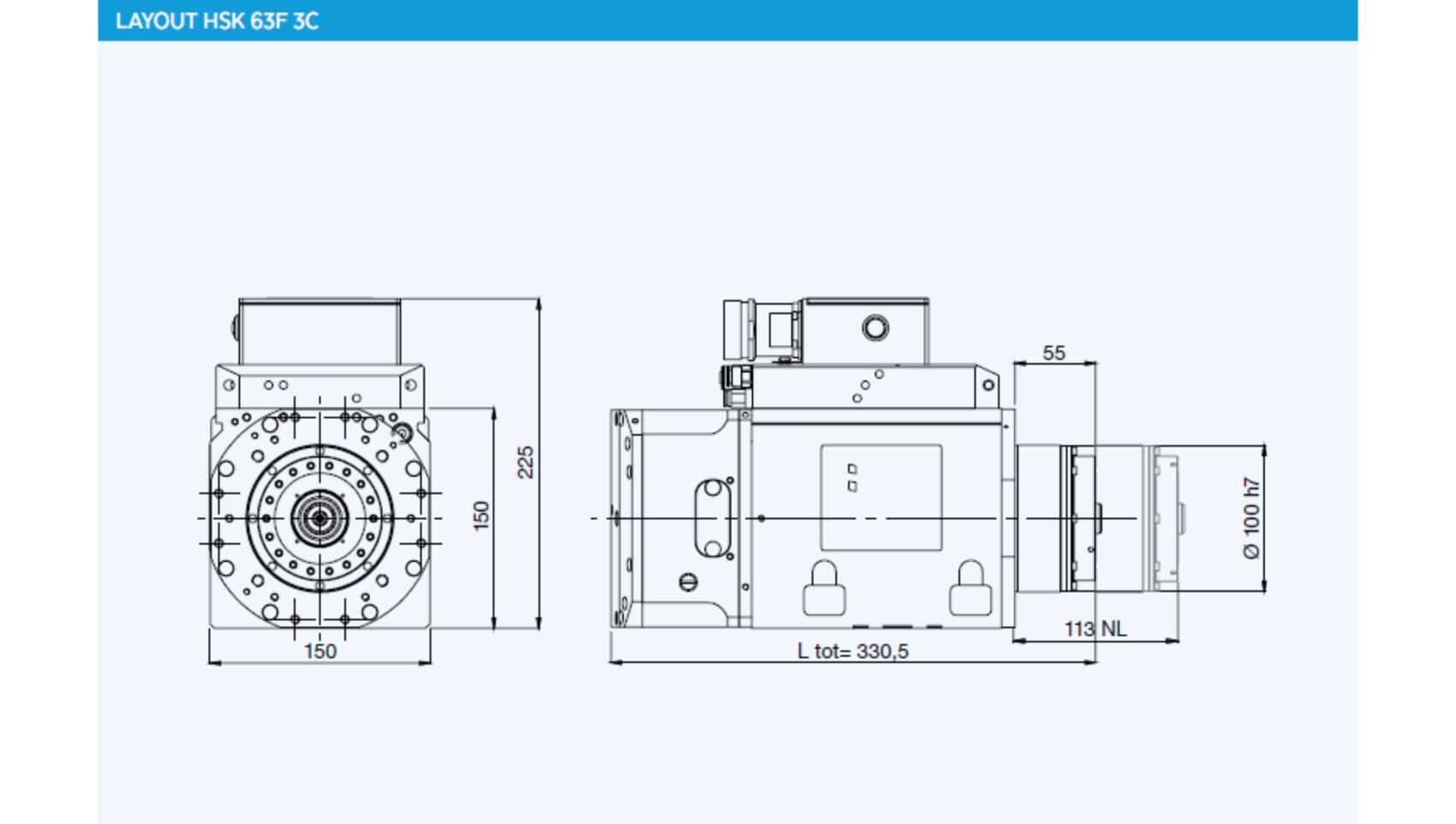

VERSATILE LAYOUT
Square housing optimised for maximum versatility in different applications (bi-rotary bi-upright, single upright heads and 3-axis machines)
HX-2 10/7 24 3C
| Specifications | ||
| Max power S1/S6 | kW | 10/12 |
| Nominal power | rpm | 7000 |
| Max rotation speed | rpm | 24000 |
| Max torque S1/S6 | Nm | 13.6/16.4 |
| Current S1/S6 | A | 21/25 |
| Voltage | V | 380 |
| Type of electrospindle | Asynchronous 4 Poles | |
| Weight | kg |
25 |
HX-2 12/12 24 3C
| Specifications | ||
| Max power S1/S6 | kW | 12/14 |
| Nominal power | rpm | 12000 |
| Max rotation speed | rpm | 24000 |
| Max torque S1/S6 | Nm | 9.5/11.1 |
| Current S1/S6 | A | 26/29 |
| Voltage | V | 380 |
| Type of electrospindle | Asynchronous 4 Poles | |
| Weight | kg |
25 |
HX-2 13/7 24 3C
| Specifications | ||
| Max power S1/S6 | kW | 13/14 |
| Nominal power | rpm | 7000 |
| Max rotation speed | rpm | 24000 |
| Max torque S1/S6 | Nm | 17/19 |
| Current S1/S6 | A | 35/39 |
| Voltage | V | 380 |
| Type of electrospindle | Asynchronous 4 Poles | |
| Weight | kg |
25 |
HX-2 15/12 24 3C
| Specifications | ||
| Max power S1/S6 | kW | 15/17 |
| Nominal power | rpm | 12000 |
| Max rotation speed | rpm | 24000 |
| Max torque S1/S6 | Nm | 11.9/13.8 |
| Current S1/S6 | A | 30/33 |
| Voltage | V | 380 |
| Type of electrospindle | Asynchronous 4 Poles | |
| Weight | kg |
25 |
HX-2 18/12 24 3C
| Specifications | ||
| Max power S1/S6 | kW | 18/20 |
| Nominal power | rpm | 12000 |
| Max rotation speed | rpm | 24000 |
| Max torque S1/S6 | Nm | 14.3/15.9 |
| Current S1/S6 | A | 35/38.5 |
| Voltage | V | 380 |
| Type of electrospindle | Asynchronous 4 Poles | |
| Weight | kg |
25 |
HX-2 20/10 24 Synchronous 3C
| Specifications | ||
| Max power S1/S6 | kW | 20/22.3 |
| Nominal power | rpm | 10000 |
| Max rotation speed | rpm | 24000 |
| Max torque S1/S6 | Nm | 17.8/20.1 |
| Current S1/S6 | A | 48/50 |
| Voltage | V | 380 |
| Type of electrospindle | Synchronous 4 Poles | |
| Weight | kg |
25 |
| Equipment* | ||
| Tool taper | HSK 63F/63A** | |
| Type of tool changer | Automatic | |
| Bearings | Ceramic - grease lubrication for life | |
| Cooling | Liquid | |
|
Sensors |
S1 (Tool grip) |
|
| Release cylinder | Pneumatic single-action | |
|
Other specifications |
Taper blow | |
| Pressurised labyrinth | ||
| CC circular connectors | ||
* all models
**HSK 63A standard in the 20 kW model
| Optional* |
| HSK 63E/63A |
| Long nose |
| Air tool |
| Encoder 1Vpp or TTL |
| Oil Mist/MQL |
| Bearings temperature monitoring sensor |
| Speed monitoring sensor |
| Vibration sensor |
| Anti-rotation sleeves |
* all models
