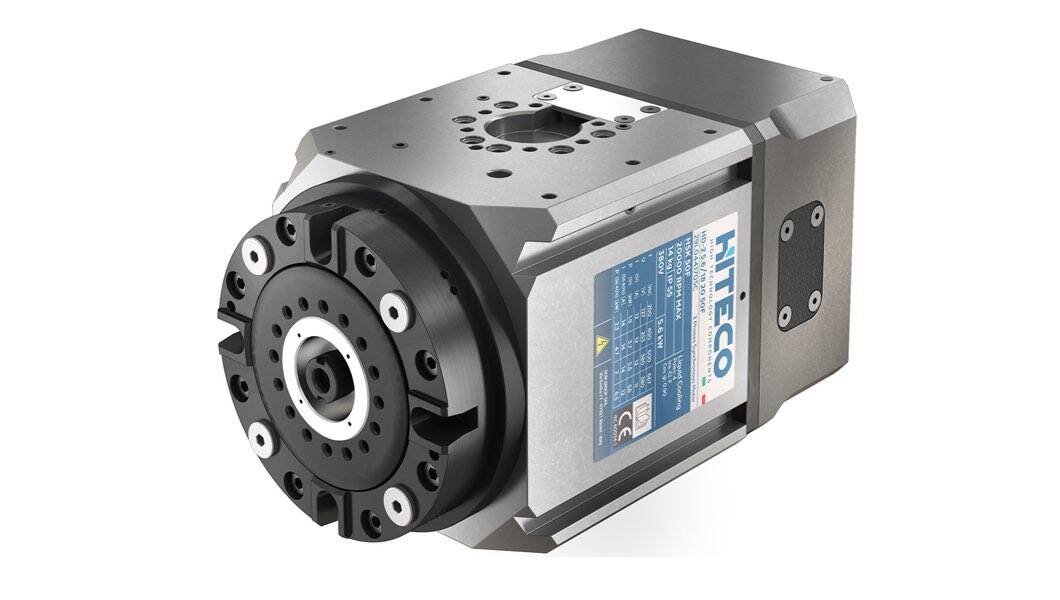

HD Series

  • Suitable for machining aluminium and composite materials
  • Optimal layout for bi-rotation heads at 90°
  • Reduced dimensions and weight to ensure utmost versatility
  • Ceramic bearings that ensure the long life of the electrospindle
Advantages

COMPACT DESIGN
High power levels in only 238 mm

EXTENSIVE STANDARD EQUIPMENT
Anti-rotation system of the aggregates integrated in the electrospindle nose and tool lubrication with two separate circuits

MULTIPLE TOOL TAPERS
Available with HSK 50F and HSK 40E tool taper

CONFIGURABILITY
Encoder 1Vpp or TTL available without any change to the layout of the electrospindle

Layout
Performance
Technical data
Specifications
Max power S1/S6 kW 5.6/7
Nominal power rpm 18000
Max rotation speed rpm 20000
Max torque S1/S6 Nm 3/3.7
Current S1/S6 A 12/14
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg

18



Equipment
Tool taper HSK 50F/40E
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)
       S3 (Spindle rotation)

Release cylinder Pneumatic single-action

Other specifications

Taper blow
Pressurised labyrinth



Optional
Encoder 1Vpp or TTL
S5 sensor
Configuration
HD-2 5.6/18 20 HSK 50F
HD-2 5.6/18 20 HSK 40E
