HX 3C Series

  • Suitable for machining aluminium and composite materials
  • Designed for demanding machining operations for 3-axis CNC and robotic arms
  • Fast electrical connection with standard circular connectors
  • iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link)
Advantages

CONFIGURABILITY
With the same layout there is a wide range of power options available (up to 20 kW)  to meet different types of machining operations

STIFFNESS
5 bearings in the long nose version for greater precision in demanding machining operations

VERSATILE LAYOUT
Square housing optimised for maximum versatility in different applications (bi-rotary bi-upright, single upright heads and 3-axis machines)

WIDE RANGE OF OPTIONALS
Encoder and Mql - Oil Mist (“oil frog”) for optimal precision and lubrication when machining aluminium parts

Layout

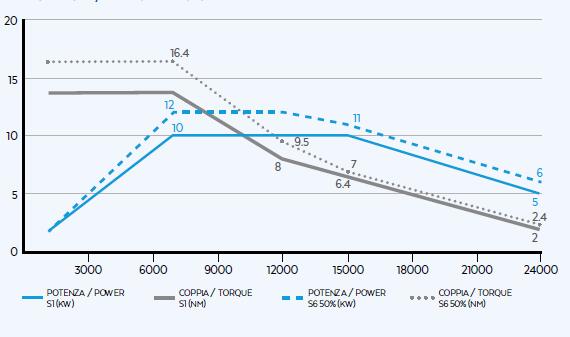

Performance
Technical data

HX-2 10/7 24 3C

Specifications
Max power S1/S6 kW 10/12
Nominal power rpm 7000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 13.6/16.4
Current S1/S6 A 21/25
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg

25



HX-2 12/12 24 3C

Specifications
Max power S1/S6 kW 12/14
Nominal power rpm 12000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 9.5/11.1
Current S1/S6 A 26/29
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg

25



HX-2 13/7 24 3C

Specifications
Max power S1/S6 kW 13/14
Nominal power rpm 7000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 17/19
Current S1/S6 A 35/39
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg

25



HX-2 15/12 24 3C

Specifications
Max power S1/S6 kW 15/17
Nominal power rpm 12000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 11.9/13.8
Current S1/S6 A 30/33
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg

25



HX-2 18/12 24 3C

Specifications
Max power S1/S6 kW 18/20
Nominal power rpm 12000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 14.3/15.9
Current S1/S6 A 35/38.5
Voltage V 380
Type of electrospindle Asynchronous 4 Poles
Weight kg

25



HX-2 20/10 24 Synchronous 3C

Specifications
Max power S1/S6 kW 20/22.3
Nominal power rpm 10000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 17.8/20.1
Current S1/S6 A 48/50
Voltage V 380
Type of electrospindle Synchronous 4 Poles
Weight kg

25





Equipment*
Tool taper HSK 63F/63A**
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)
 S3 (Spindle rotation)

 S5 (Piston back)
Release cylinder Pneumatic single-action

Other specifications

Taper blow
Pressurised labyrinth
CC circular connectors

                                * all models

                                **HSK 63A standard in the 20 kW model



Optional*
HSK 63E/63A
Long nose
Air tool
Encoder 1Vpp or TTL
Oil Mist/MQL
Bearings temperature monitoring sensor
Speed monitoring sensor
Vibration sensor
Anti-rotation sleeves

                                   * all models

Configuration
HX-2 107 24 63E NL 3C
Technical sheet Download
Layout Download
HX-2 15/12 24 63F NL 3C
Technical sheet Download
Layout Download
HX-2 10/7 24 HSK63F 3C
HX-2 10/7 24 HSK63E 3C
HX-2 10/7 24 HSK63A 3C
HX-2 12/12 24 HSK63F 3C
HX-2 12/12 24 HSK 63E 3C
HX-2 12/12 24 HSK 63A 3C
HX-2 13/7 24 HSK63F NC 3C
HX-2 13/7 24 HSK63E NC 3C
HX-2 13/7 24 HSK63A NC 3C
HX-2 15/12 24 HSK63F NC 3C
HX-2 15/12 24 HSK63E NC 3C
HX-2 15/12 24 HSK63A NC 3C
HX-2 18/12 24 HSK63F NC 3C
HX-2 18/12 24 HSK63E NC 3C
HX-2 18/12 24 HSK63A NC 3C
HX-2 20/10 24 HSK63A NC 3C
HX-2 20/10 24 HSK63E NC 3C
