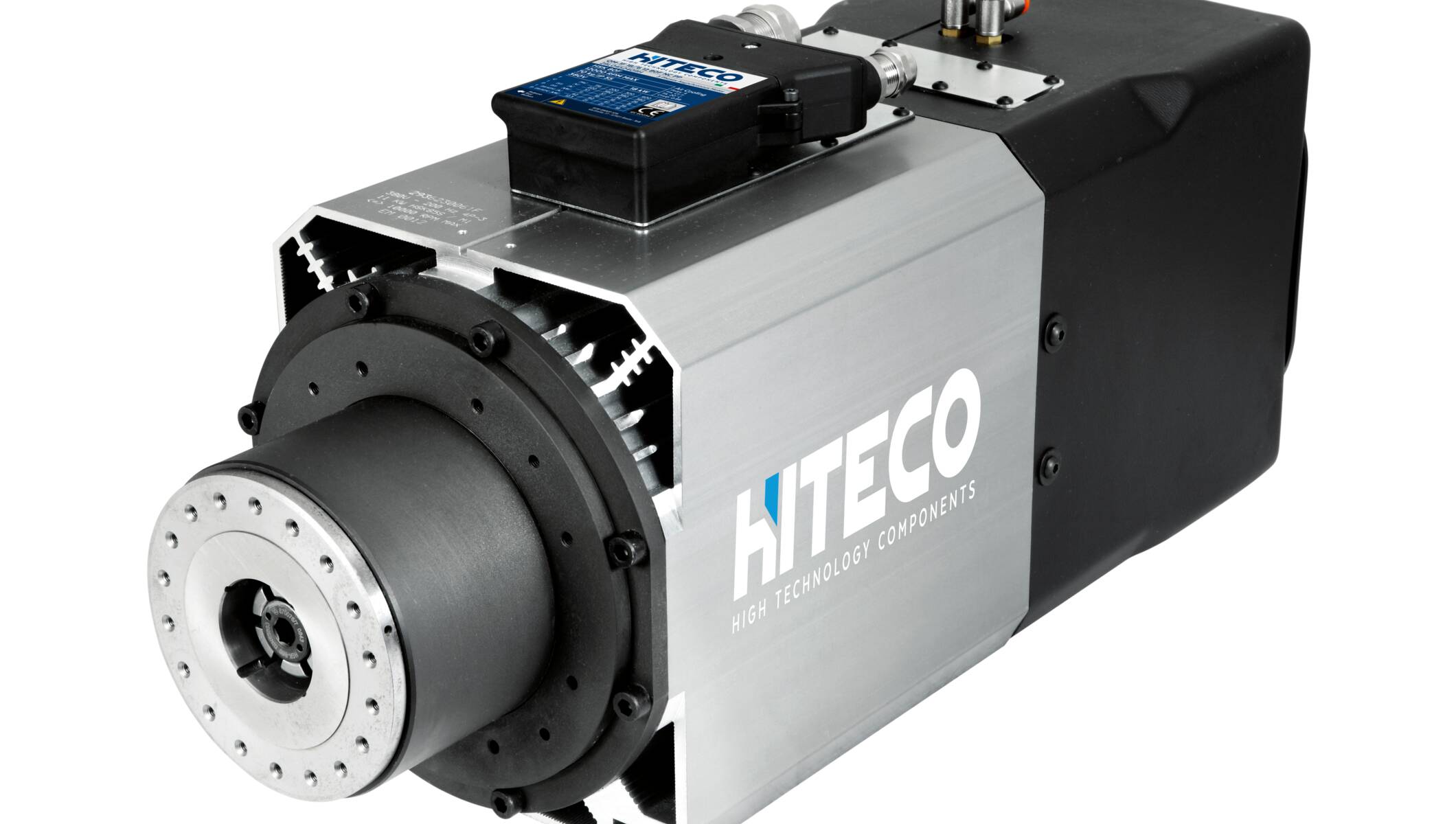

QM-1F 11/6 10 85S

(512) 931-1962
QM-1F 11/6 10 85S
  • Designed for machining wooden parts for framework and aluminium
  • Power up to 18 kW and high torque levels for demanding machining operations
  • 24V electric fan air cooling
  • iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link)
Vorteile

DEMANDING MACHINING OPERATIONS
Special HSK 80F and 85S tool taper available for tools with four profiles

HIGH TORQUE
Maximum power from 6000 RPM in the air cooled versions

STIFFNESS
Thanks to the use of large bearings

CONFIGURABILITY
With the same layout there is a wide range of power options available (up to 18 kW)  to meet different types of machining operations

Layout
Performance
Technische Daten
Specifications
Max power S1/S6 kW 11/13
Nominal power rpm 6000
Max rotation speed rpm 10000
Max torque S1/S6 Nm 19.1/24.6
Current S1/S6 A 25/33
Voltage V 380
Type of electrospindle Synchronous 4 Poles
Weight kg 70



Equipment
Tool taper HSK 85S
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Electrofan

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)

Release cylinder Pneumatic single-action

Other specifications

Plug & play PP connection
Taper blow
Pressurised labyrinth



Optional
HSK 80F
iSpindle
Plug & play PP machine side connection
Speed monitoring sensor
Bearings temperature monitoring sensor
Vibration sensor
Configuration
QM-1F 11/6 10 HSK85S NC PP
