HT 3C Series
- Suitable for machining wood and aluminium
- Air and lubrication passage through the spindle (Oil Mist, MQL) to improve the machining efficiency of wood, light alloys and composite materials
- Square extruded section optimised for maximum versatility in the different applications
- Possibility of installing the encoder in the same casing size
- iM SMART SENSOR: speed, vibrations and temperature directly to your PC (link)
STIFFNESS
5 bearings in the long nose version for greater precision in demanding machining operations
VERSATILE LAYOUT
Maximum versatility in the different applications such as bi-rotative heads, 3-axis CNC and robotic applications

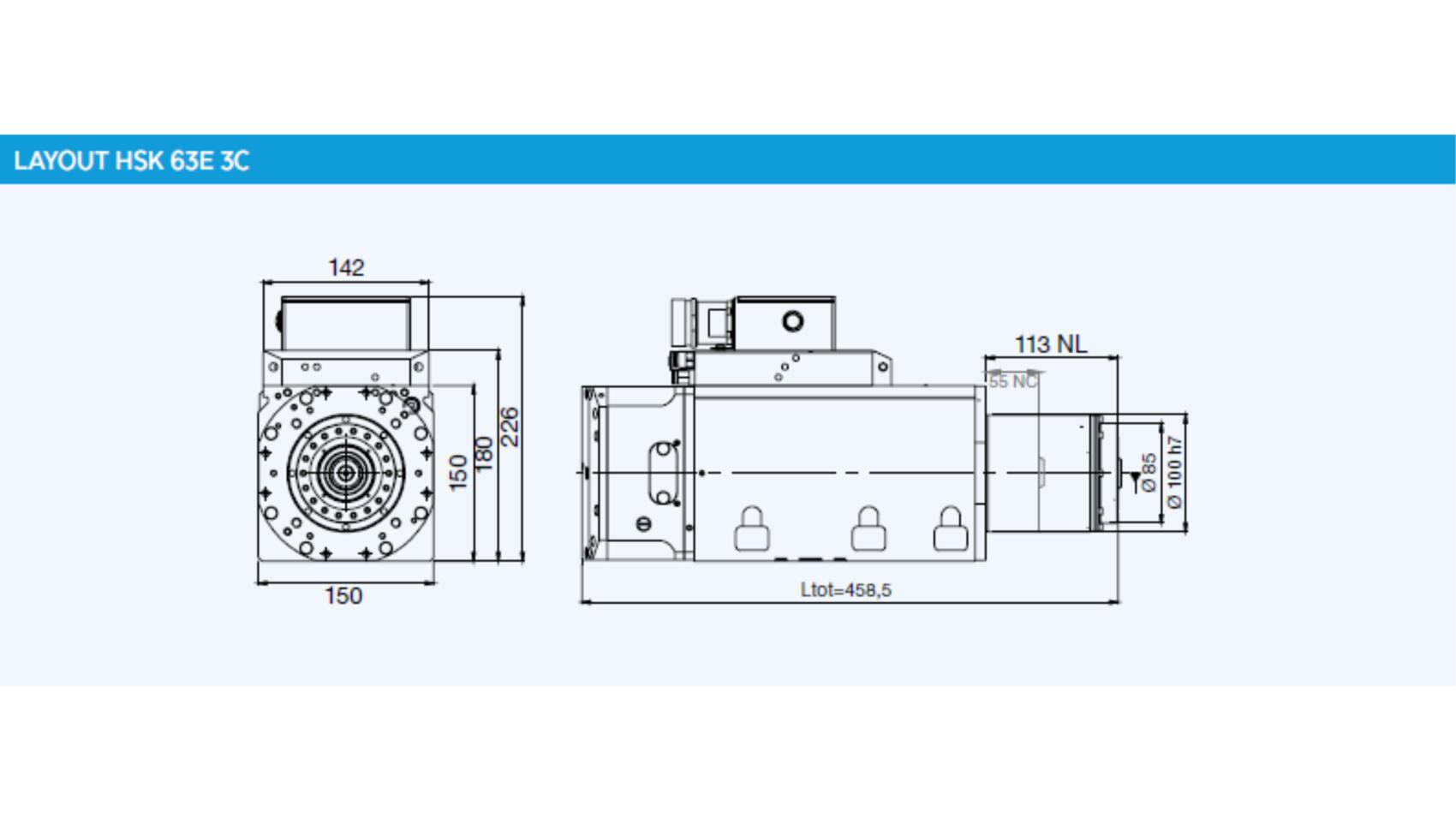

Layout

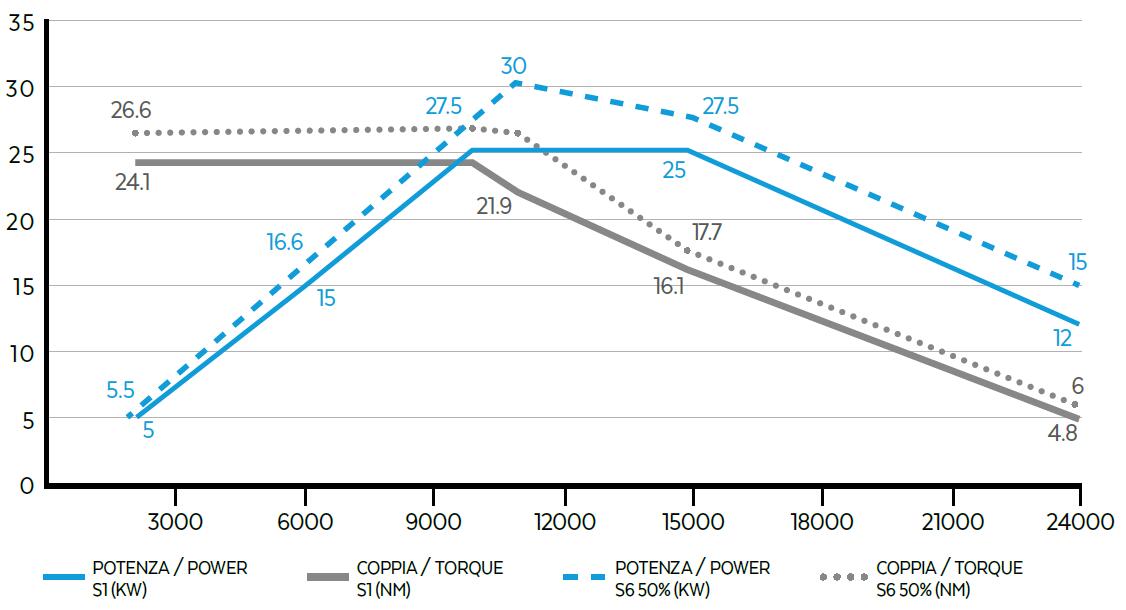

Performance
Technische Daten
HT-2 25/10 18
| Specifications | ||
| Max power S1/S6 | kW | 25/27.5 |
| Nominal power | rpm | 10000 |
| Max rotation speed | rpm | 18000 |
| Max torque S1/S6 | Nm | 24.2/26.6 |
| Current S1/S6 | A | 56/62 |
| Voltage | V | 380 |
| Type of electrospindle | Asynchronous 4 Poles | |
| Weight | kg |
42 |
HT-2 25/10 24
| Specifications | ||
| Max power S1/S6 | kW | 25/30 |
| Nominal power | rpm | 10000 |
| Max rotation speed | rpm | 24000 |
| Max torque S1/S6 | Nm | 24.2/26.6 |
| Current S1/S6 | A | 53/60 |
| Voltage | V | 380 |
| Type of electrospindle | Asynchronous 4 Poles | |
| Weight | kg |
42 |
| Equipment* | ||
| Tool taper | HSK 63F | |
| Type of tool changer | Automatic | |
| Bearings | Ceramic - grease lubrication for life | |
| Cooling | Liquid | |
|
Sensors |
S1 (Tool grip) S5 (Piston back) |
|
| Release cylinder | Pneumatic single-action | |
|
Other specifications |
Taper blow | |
| Pressurised labyrinth | ||
| CC circular connector | ||
* all models
| Optional* |
| Toolholder HSK 63E/63A |
| Long/Short nose |
| Encoder 1Vpp or TTL |
| CC machine side circular connection |
| Bearings temperature monitoring sensor (iM Smart Sensor) |
| Speed monitoring sensor (iM Smart Sensor) |
| Vibration sensor (iM Smart Sensor) |
| Oil Mist/MQL |
| Air Tool |
* all models
Configuration
HT-2 25/10 18 HSK 63E NC 3C
3D
Request file
HT-2 25/10 18 HSK 63A NC 3C
3D
Request file
HT-2 25/10 24 HSK 63E NC 3C
3D
Request file
HT-2 25/10 24 HSK 63A NC 3C
3D
Request file
HT-2 25/10 24 HSK 63F NL ES 3C
Layout
Download
3D
Request file
