QX Series

QX Series - Hiteco
  • 适合木材和铝材的加工
  • 高功率密度
  • 90°和50°双向旋转头的最佳布局
  • 可提供编码器版本
Advantages

适合HITECO生产的更紧凑主轴

可提供压缩空气冷却

连接板上的装置出口具有螺纹孔

可提供适合集合安装的参考法兰

Layout

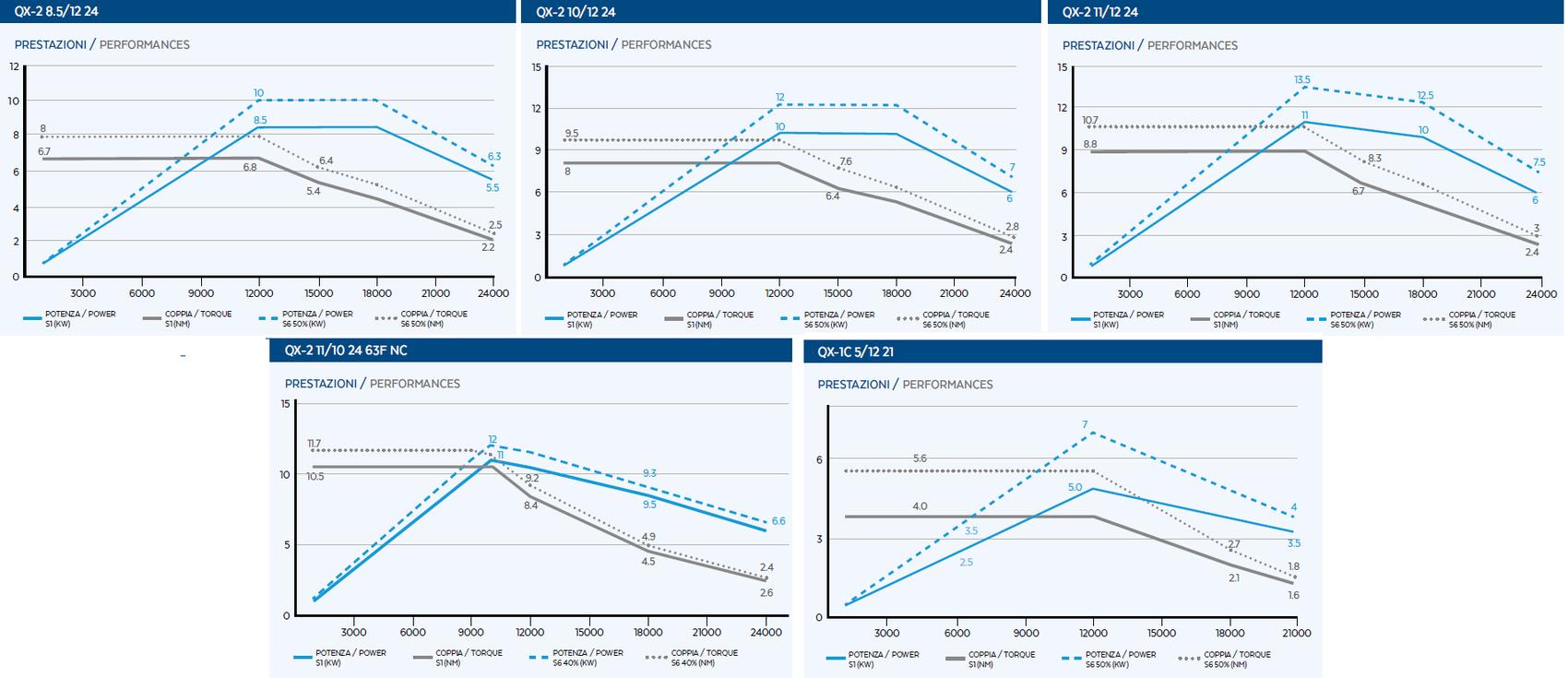

Performance
Technical data
技术规格
最大功率 S1/S6 kW 10/12
弯管 rpm 12000
最大旋转速度 rpm 24000
最大扭矩 S1/S6 Nm 8/9.5
电流 S1/S6 A 23/26
电压 V 380
电主轴类型 4极异步，带变频器
重量 kg 19



配置
刀具接口 HSK 63F
换刀类型 自动
轴承 陶瓷 - 永久润滑
冷却 液体

传感器

S1 (刀具夹紧)
S2 (夹钳打开)
S3 (轴旋转)
释放缸 单效气动

其他特性

 锥柄吹气
加压迷宫
Pressurised labyrinth



可选
编码器 1Vpp 或 TTL
传感器S5（）
轴承温度监控传感器
速度监控传感器
震动传感器
电源 220 V
Media
Configuration
QX-2 8.5/12 24 HSK63F NC
Technical sheet Download
Layout Download
3D Request file
QX-2 8.5/12 24 HSK63F NC 4S
Technical sheet Download
Layout Download
3D Request file
QX-2 10/12 24 HSK63F NC
Technical sheet Download
Layout Download
3D Request file
QX-2 11/10 24 HSK63F NC
3D Request file
QX-2 11/12 24 HSK63F NC
Technical sheet Download
Layout Download
3D Request file
QX-1C 5/12 24 HSK 63F NC SC
Technical sheet Download
Layout Download
3D Request file
