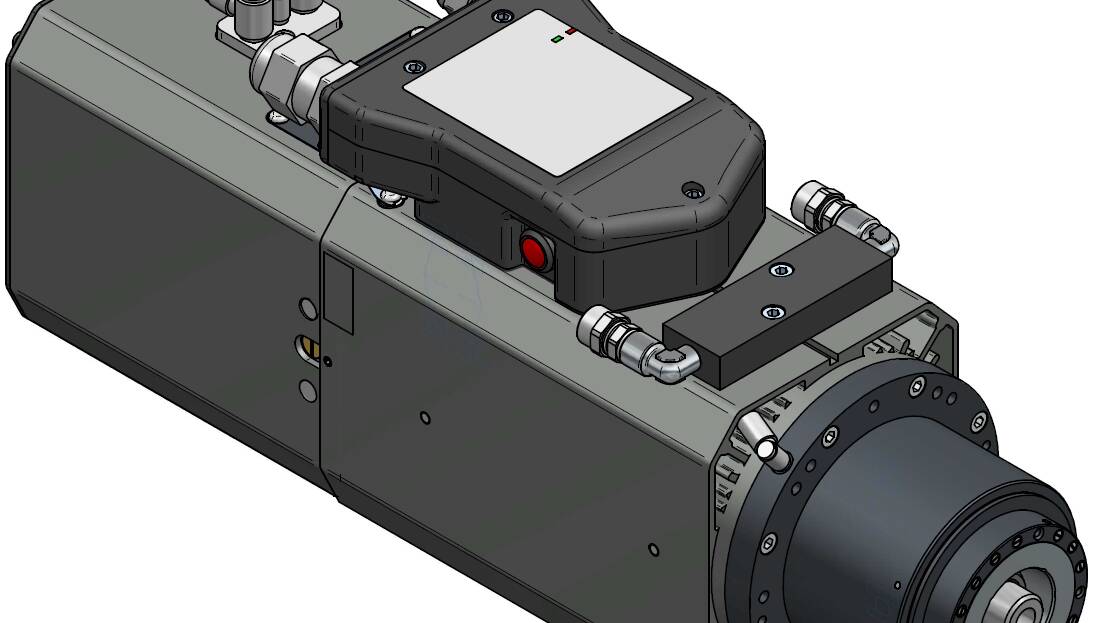

QE-2 9/6 12 HSK63F

(512) 931-1962
QE-2 9/6 12 HSK63F
  • Suitable for machining wood, aluminium and advanced materials
  • Liquid cooling available for intensive uses
  • Possibility of drilling, flowdrill and threading
  • Optional encoder available for tapping and precision machining operations
Vorteile

MULTIPLE TOOL TAPERS
Available also with HSK 63 F, ISO 30 and BT 30 tool taper

SIMPLE MAINTENANCE
Simple maintenance with spindle kit management

HIGH TORQUE
Maximum power from 6000 RPM in the air and liquid cooled versions

iM SMART SENSOR
speed, vibrations and temperature directly to your PC (link)

Layout

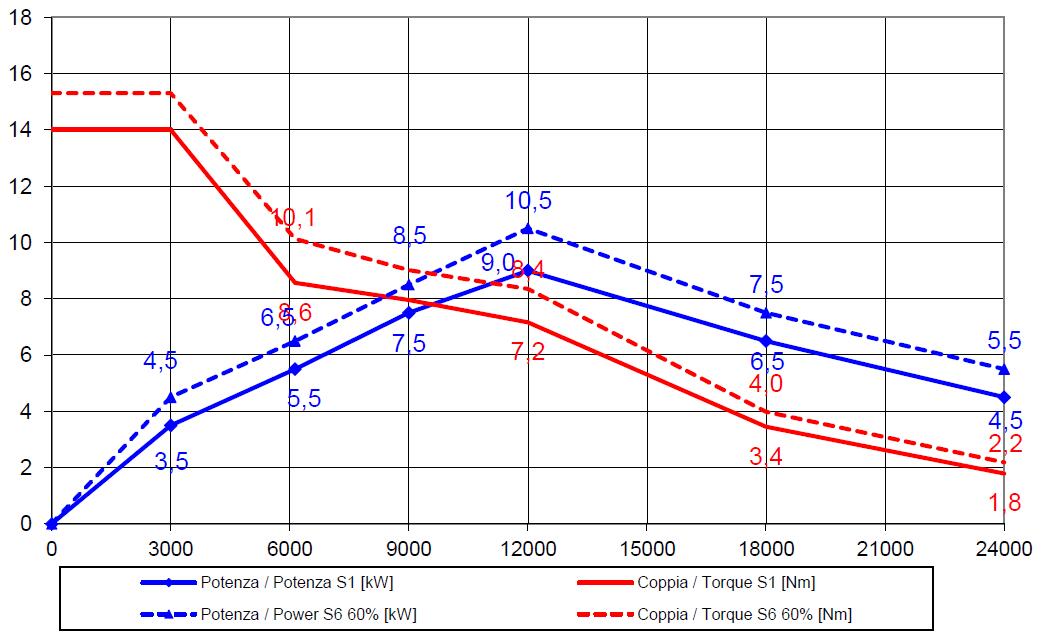

Performance
Technische Daten
Specifications
Max power S1/S6 kW 9/10.5
Nominal power rpm 6000
Max rotation speed rpm 24000
Max torque S1/S6 Nm 14/16.4
Current S1/S6 A 20/22.5
Voltage V 380
Type of electrospindle Synchronous 4 Poles
Weight kg 23



Equipment
Tool taper HSK 63F
Type of tool changer Automatic
Bearings Ceramic - grease lubrication for life
Cooling Liquid

Sensors

S1 (Tool grip)
 S2 (Collet open)
        S3 (Spindle rotation)

Release cylinder Pneumatic double-action

Other specifications

Taper blow
Pressurised labyrinth



Optional
Long nose
C Axis
Air Tool
Encoder 1Vpp or TTL
Plug & play PP connection
CC circular connection
S5 sensor
Speed monitoring sensor
Bearings temperature monitoring sensor
Vibration sensor
Configuration
QE-2 9/6 24 HSK63F NC CB
Technical sheet Download
Layout Download
QE-2 9/6 24 HSK63F NL CB
